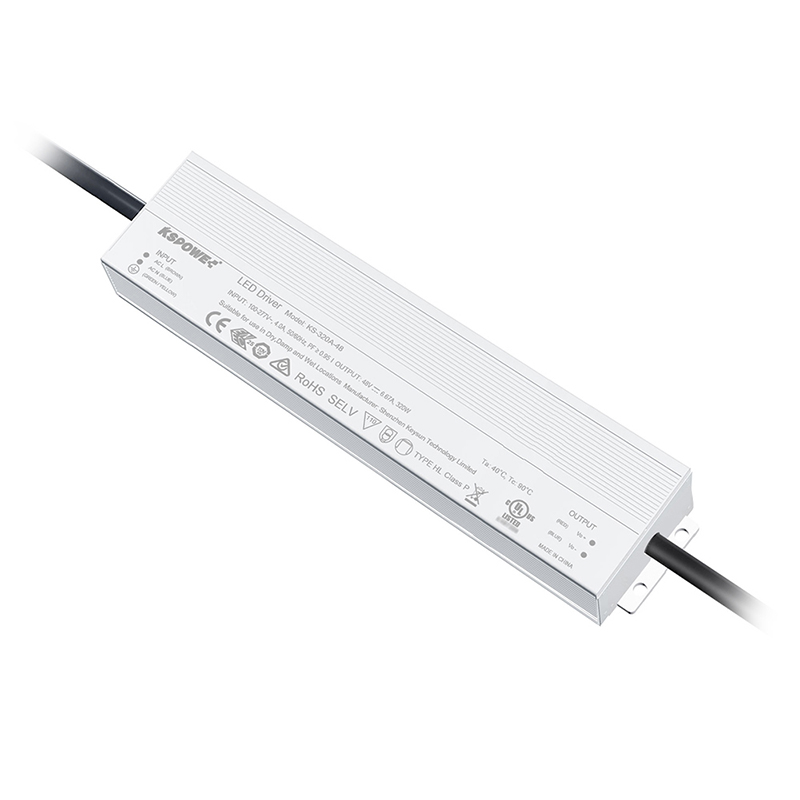

KSPOWER Customizable Slivery High PFC Adjustable Voltage 24V IP67 300W 5-Year Warranty For 91% Efficiency Swimming Pool Lights
1 / 5
KSPOWER Customizable Slivery High PFC Adjustable Voltage 24V IP67 300W 5-Year Warranty For 91% Efficiency Swimming Pool Lights
Wholesale Price Customizable Slivery High PFC Constant Voltage LED Drivers 24V IP67 300W Swimming Pool Lights LED Transformer

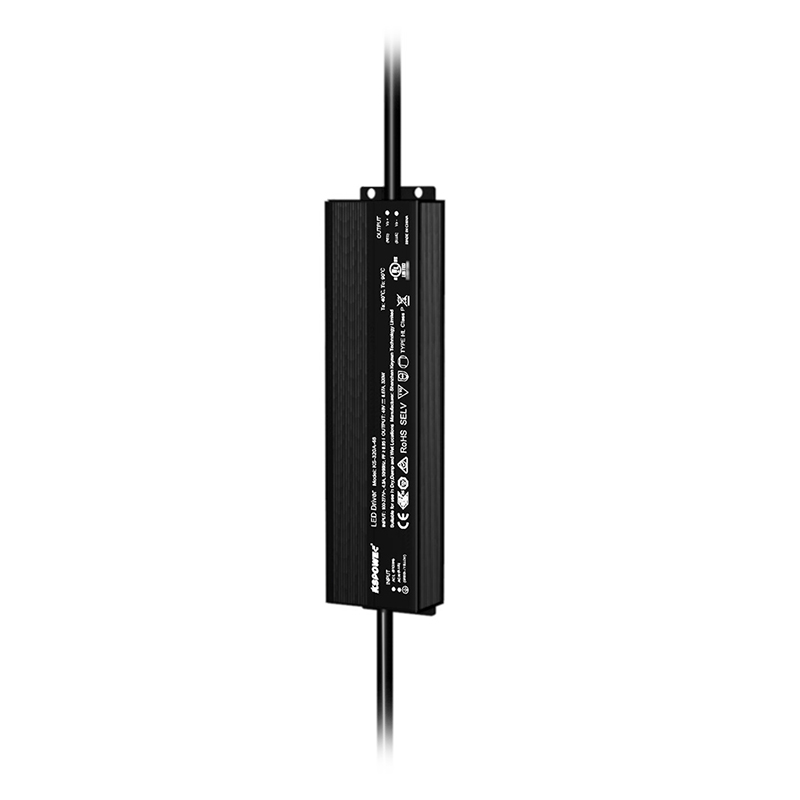

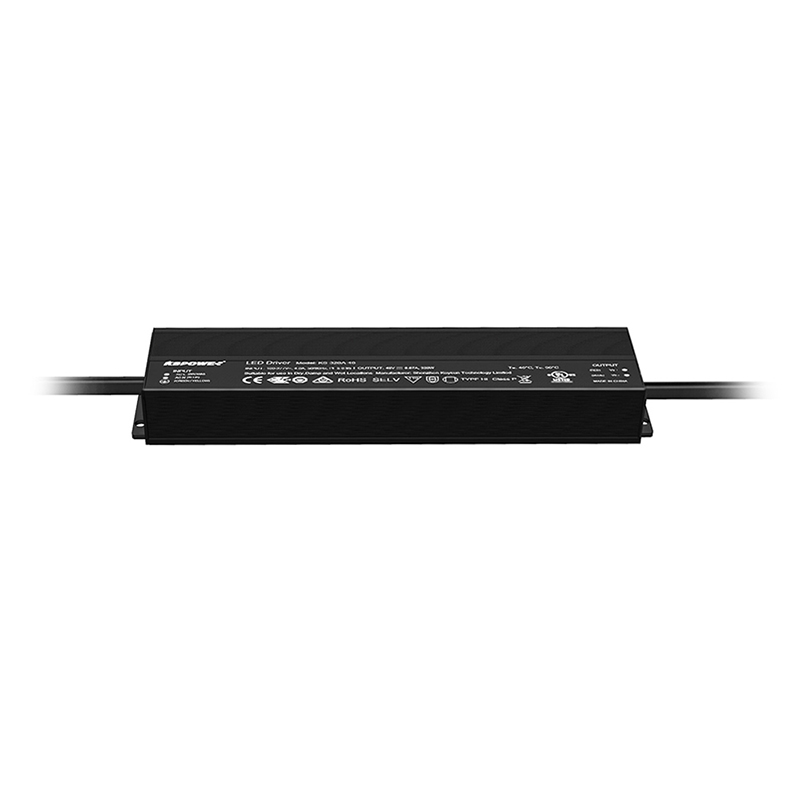

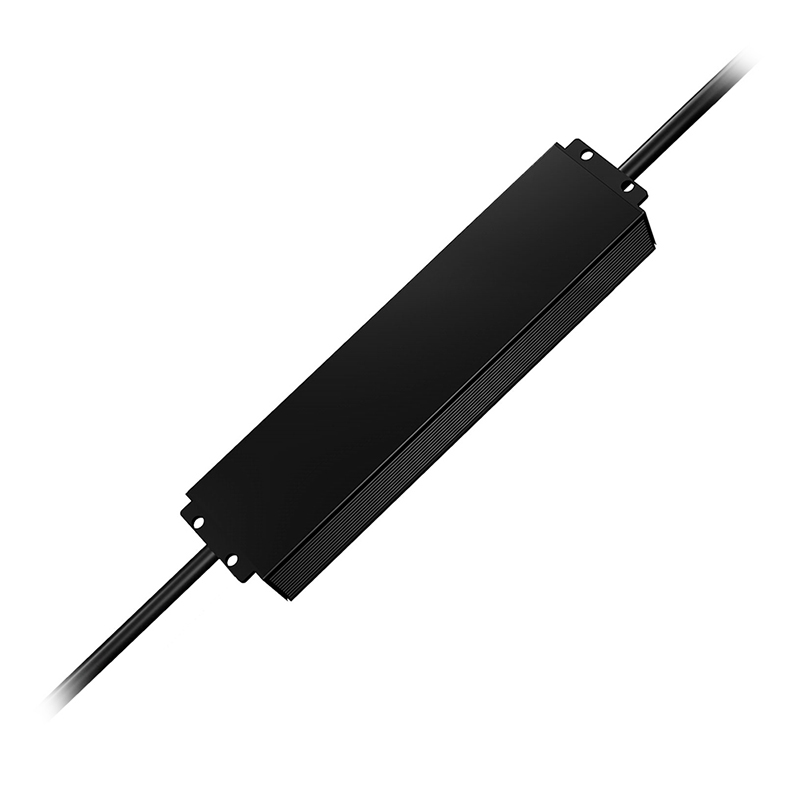

The KSPOWER - H series non dimmable led driver 300 Watt is one constant voltage solution, accept universal AC input voltage range from 100V to 277V, output voltage 24Volt optional with greater operating efficiency and high PFC function. Featuring single output and IP67 waterproof environment protection rated for indoor or outdoor use, the UL/cUL CE GS listed outdoor lights power supply provide 5 years warranty and no flicker outstanding performance.
Features
Input Voltage: Universal 100VAC to 277VAC, 50/60Hz for Residential, Commercial, Industrial and Other Use
Single Channel & Constant Voltage mode
Output Voltage: 24Volt
Driver Type: Class P
Enclosure: LISTED Enclosure with Junction Box / LISTED Enclosure without Junction Box
Environmental: Dry and Damp
Wiring Compartments with Knock-Outs for Clean and Easy Installation

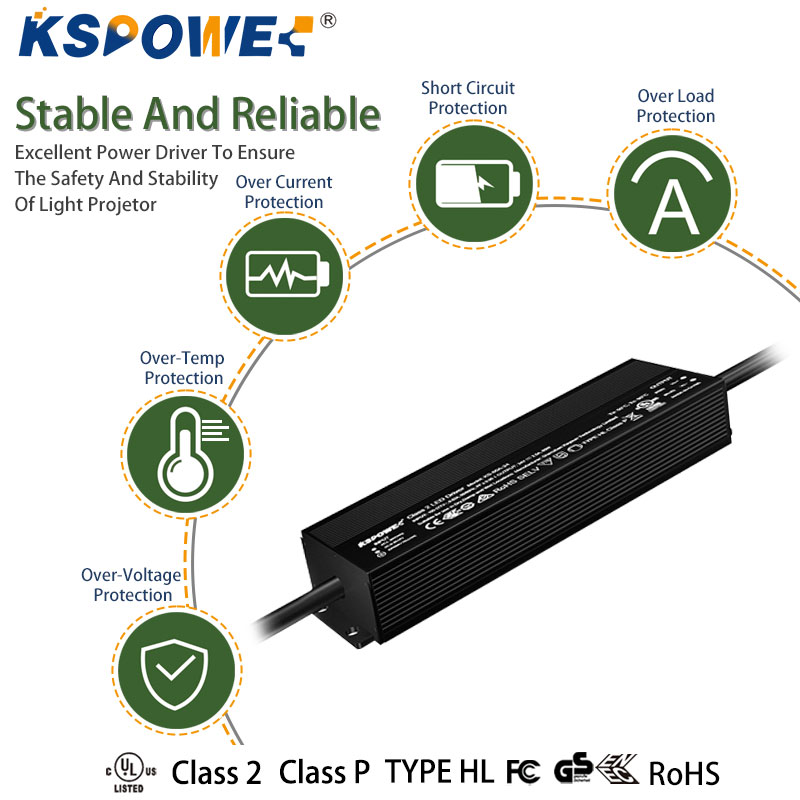

Current Limiting Overload Protection
Flicker-Free & Smooth Ripple Free Output Voltage

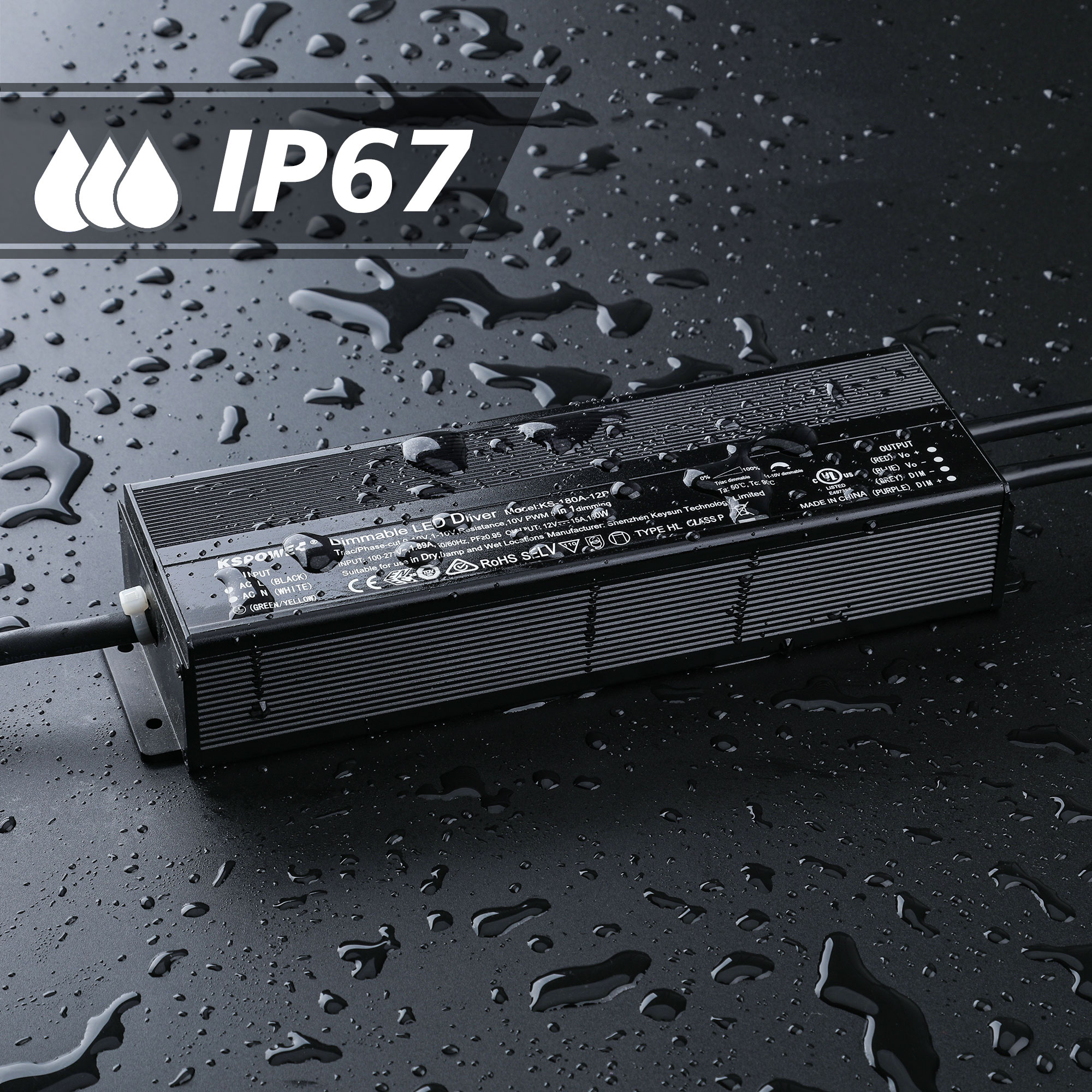

IP65; IP67 Rated Enclosure for Indoor and Outdoor Use
5-Years Warranty
UL/cUL CE FCC RoHS ENEC GS Listed, SELV, Type HL
Note: Any custom label/package/case is acceptable, provide OEM and ODM service.
Input Voltage
100~277V AC 47~63Hz
Power Factor
PF≥0.98/115VAC, PF≥0.95/230VAC, PF≥0.9/277VAC, 80% with load
NO.
KSH-300W24
Output Voltage
24V
Rated Current
12.5A
Rated Power
300W
Ripple & Noise (max.)
250mVp-p
Certificate
UL/cUL FCC CE ROHS SAA CLASS P etc.

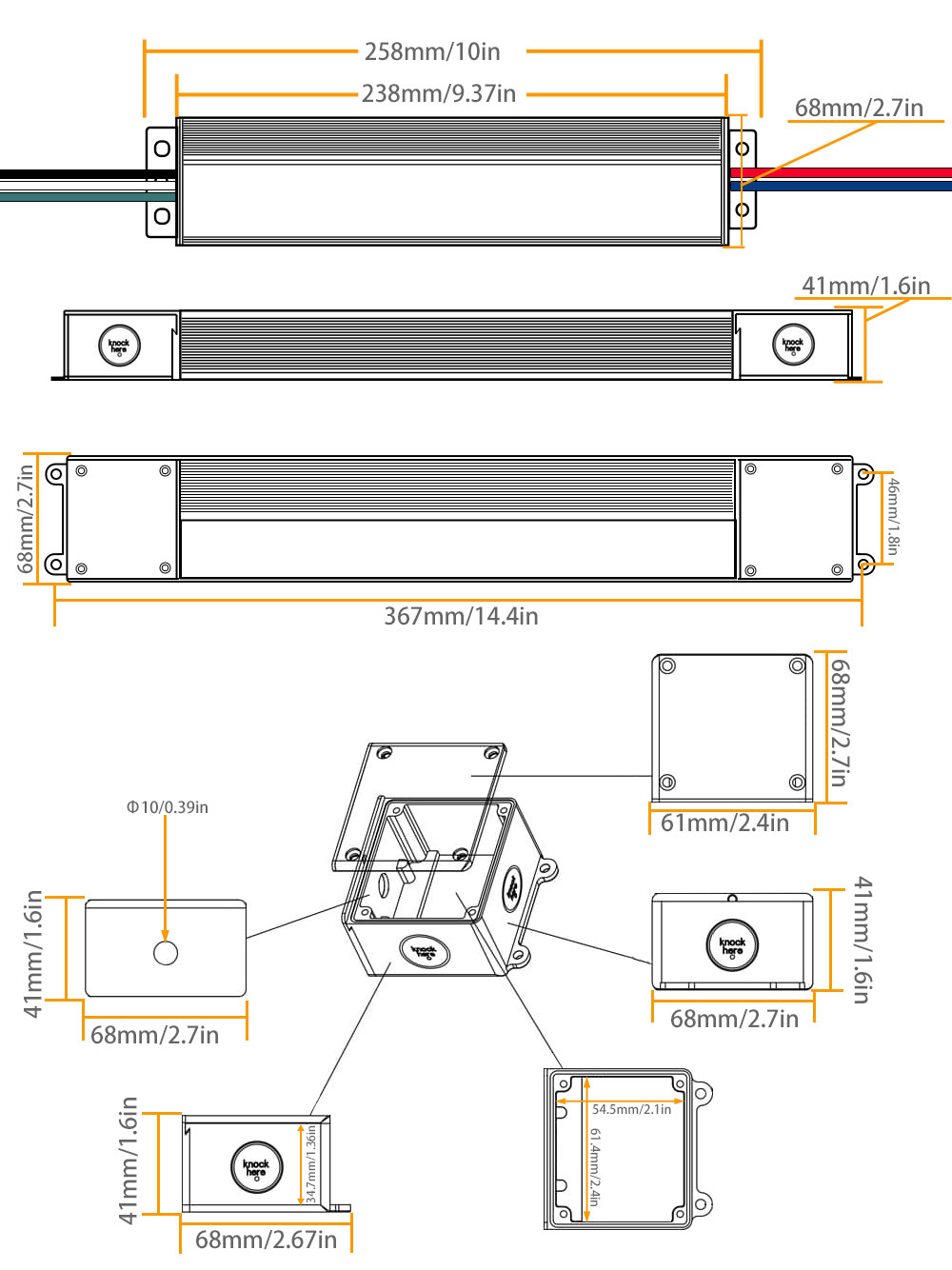

Dimension(L*W*H)
367*68*41mm / 14.4*2.68*1.85in

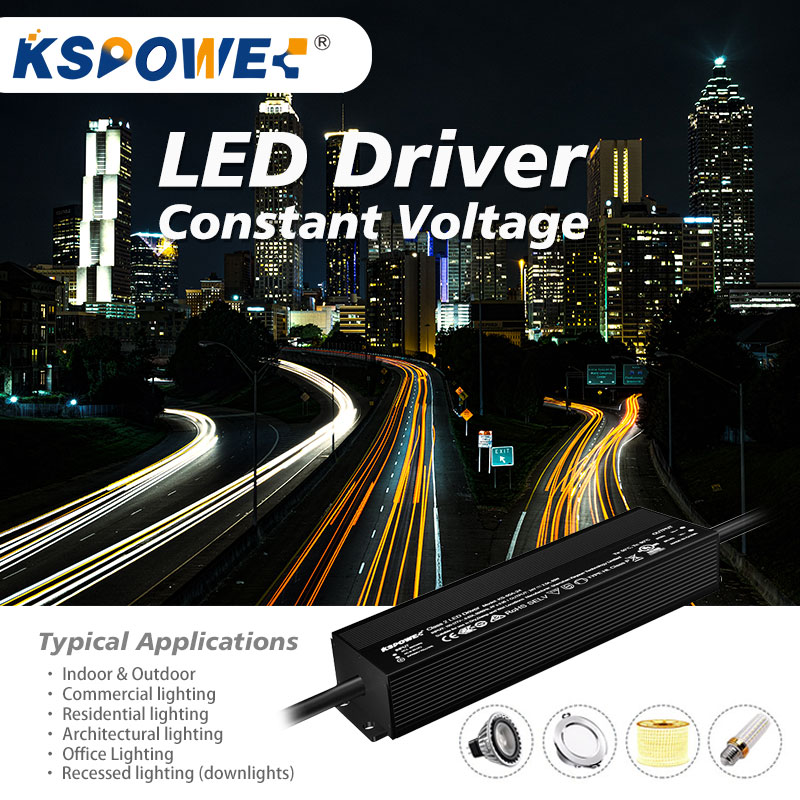

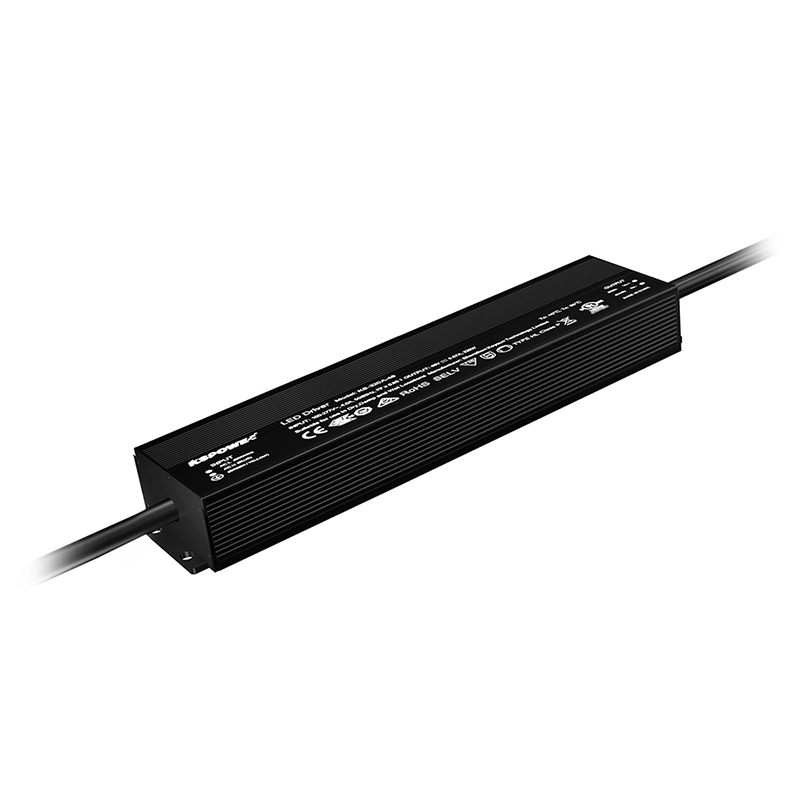

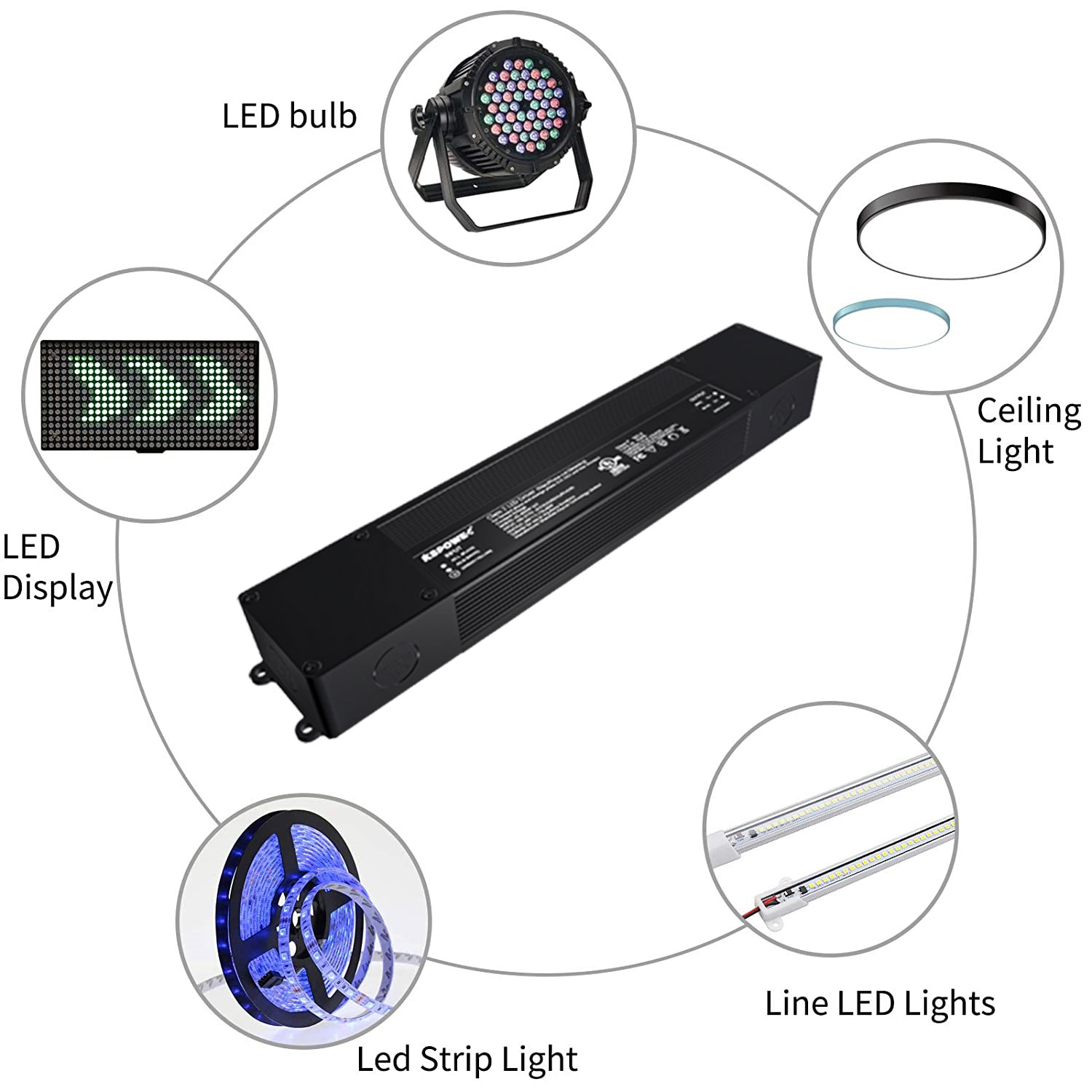

The led dimming power supply use low profile metal aluminum case with or without junction box makes the dimmable led driver solutions perfectly suitable for LED strips, LED sign, billboard and landscape lightings.
Please Contact Our Customers For Samples ↓↓↓
Hong Kong Exhibition in April 2024
Previous editions of Hong Kong and Europe
Frequently Asked Questions (FAQ)
Q: What are the key features of the KSPOWER-H series LED driver?
A: This 300W LED driver features universal input voltage (100V-277V AC), constant voltage 24V output, single channel mode, high power factor (PFC), flicker-free operation, and a robust IP67 waterproof aluminum enclosure suitable for indoor and outdoor environments.
Q: Is this 24V 300W LED transformer dimmable?
A: The H series non-dimmable LED driver is designed as a stable constant voltage solution for applications that do not require dimming control. It ensures smooth, ripple-free power output.
Q: What is the waterproof level, and where can it be installed?
A: It features an IP67 waterproof rating, making it completely dustproof and highly water-resistant. It is ideal for wet and damp locations, including outdoor signs, billboards, landscape lights, and swimming pool LED installations.
Q: What electrical safety standards does this power supply meet?
A: The driver is certified under UL/cUL, FCC, CE, RoHS, ENEC, and GS standards. It also carries Class P and Type HL ratings, ensuring safe operation in various commercial and residential settings.
Q: Does it provide protection against short circuits or overloading?
A: Yes, it includes built-in current-limiting overload protection, short-circuit protection, and thermal protection to guard both the driver and the connected LED modules.
Q: What warranty is provided with this LED driver?
A: We offer a comprehensive 5-year warranty on this high-PFC, constant voltage LED driver, ensuring long-term reliability and professional performance.
