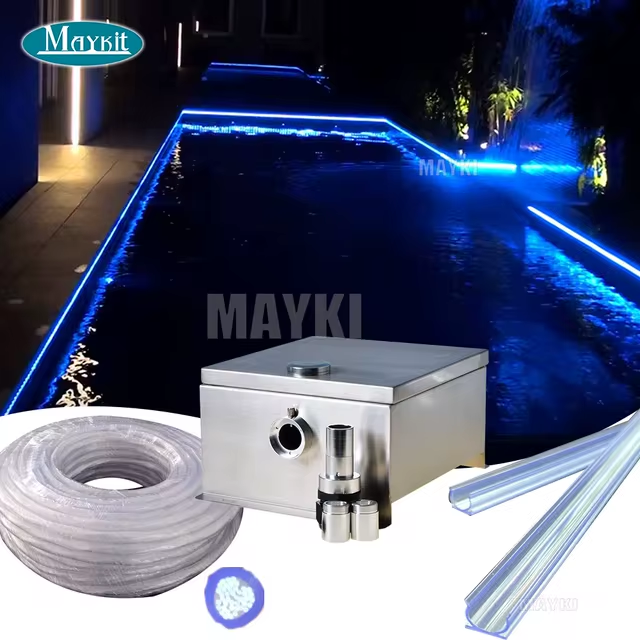

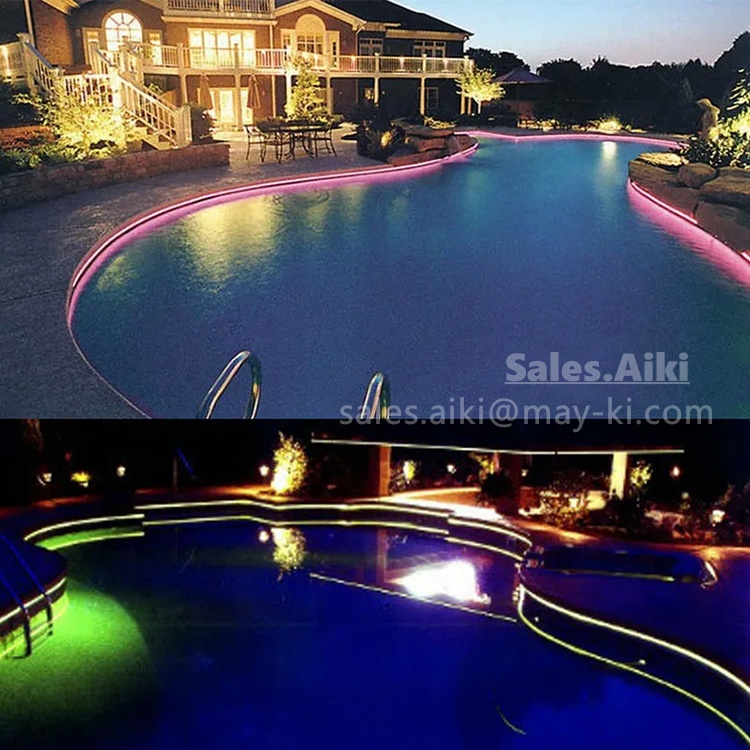

RGBW Color Changing Multicore Side Glow Fiber Optic Swimming Pool Perimeter Lighting DMX Control Fiber Optic Pool Edge Lighting

Product Description

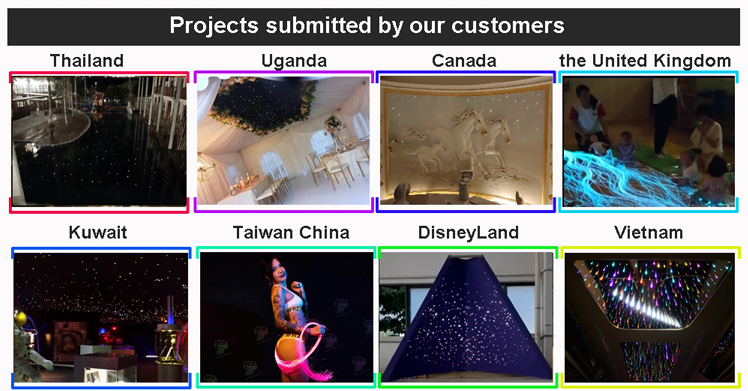

Client Feedback

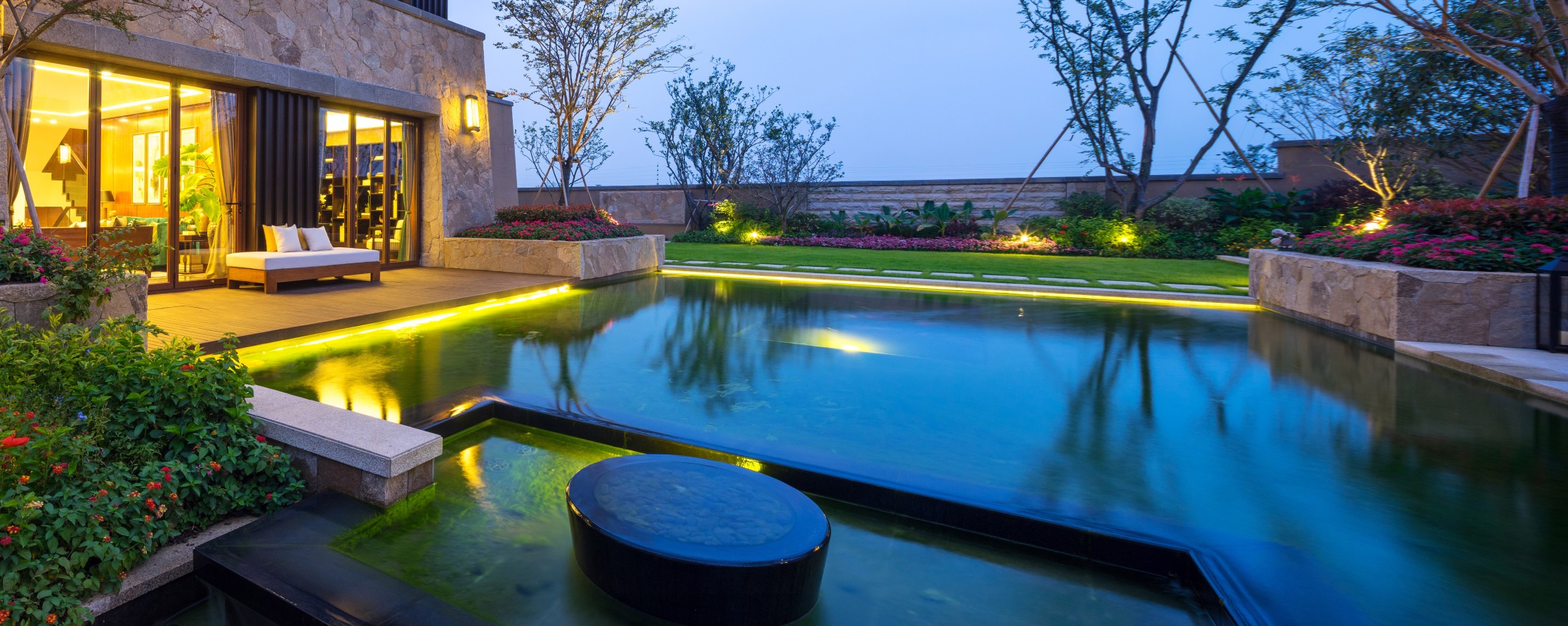

Client Feedback Display 1

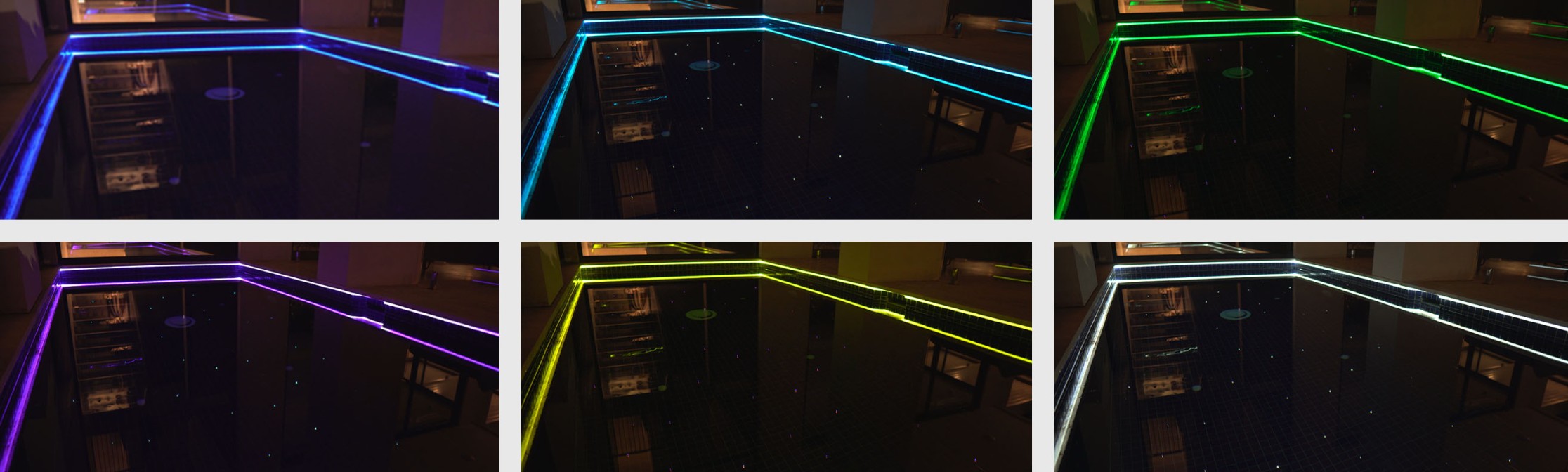

Client Feedback Display 2

Star Sky Swimming Pool Lights

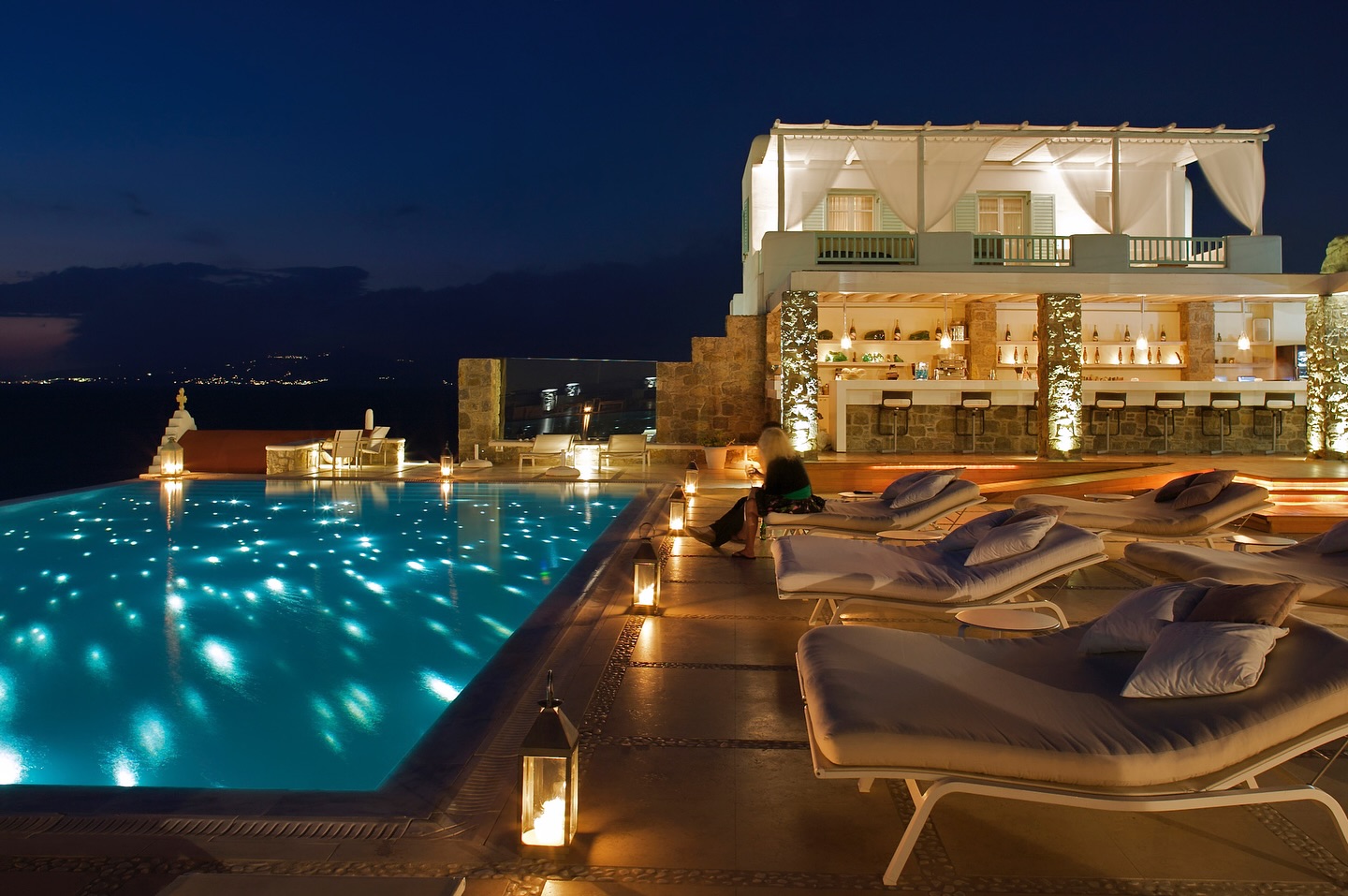

Optical Fiber Swimming Pools Light

Optical Fiber for Swimming Pools

Add a stunning star sky effect to your swimming pool using advanced end glow fiber optic technology.

  • Feature: PEOF-1*1.0/1.5/2.0mm end glow fiber
  • Color Wheel Options: White LED / 6 Color / Twinkle 6 Color / Twinkle White Wheel
  • Power Options: 40W / 80W / 150W
  • Color Temperature: 6000K (White Light) or 3000K (Warm Light)
  • Control Options: Remote and DMX Control
  • Waterproof Rating: IP43 light engine with excellent durability and stability
Fiber Optic Pool Lighting Atmosphere
Fiber Optic Light Components
Fiber Detail View 1
Fiber Detail View 2
Fiber Detail View 3
Fiber Detail View 4

Product Description

RGBW Color Changing Multicore Side Glow Fiber Optic Swimming Pool Perimeter Lighting featuring DMX Control and premium pool edge design options.

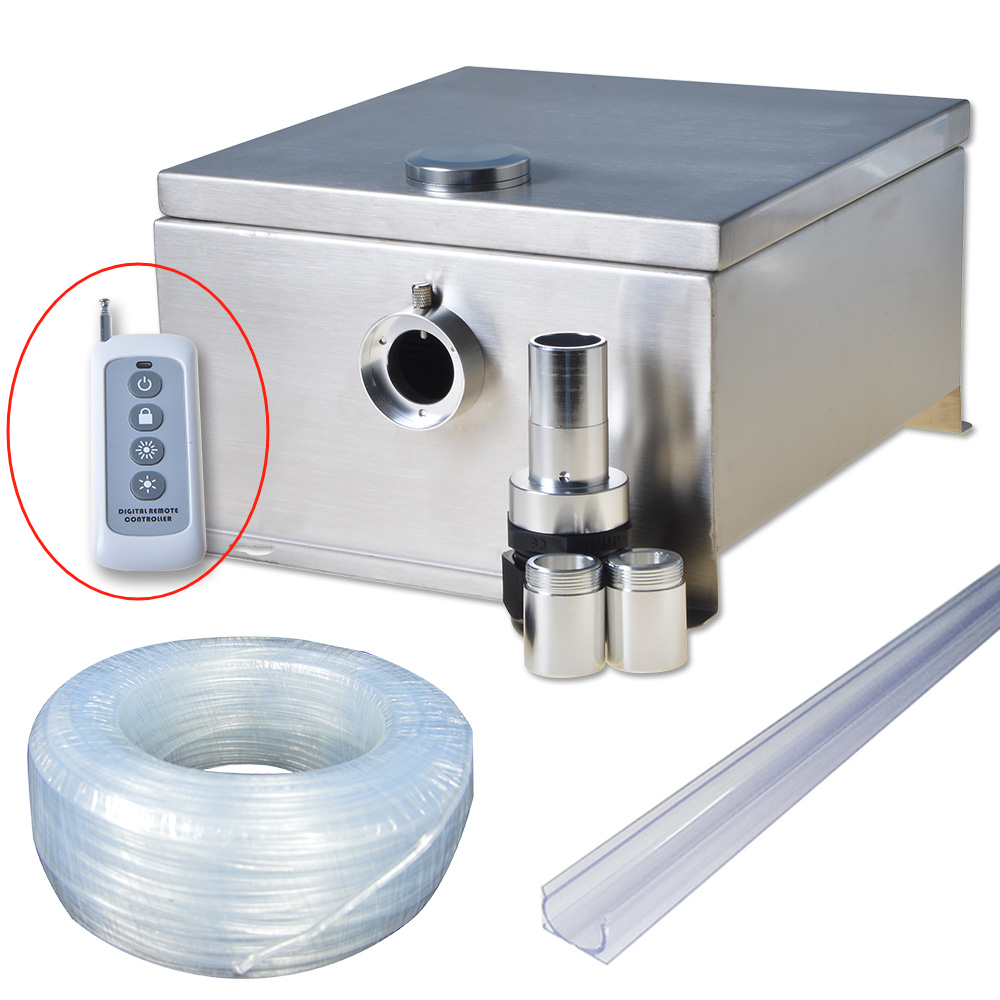

Swimming Pool Fiber Optic Perimeter Light Kits Include:

  • 40/80W waterproof LED light source (2700/3000/4000/6000K color temperatures) equipped with a cooling fan.
  • Standard 6 color / Twinkle 6 color / Twinkle white color wheel options.
  • RF Remote Controller + Bluetooth APP (DMX function available as an option).
  • MSOF-42*1.0/0.75mm SK side glow fiber (Two dimension options available).

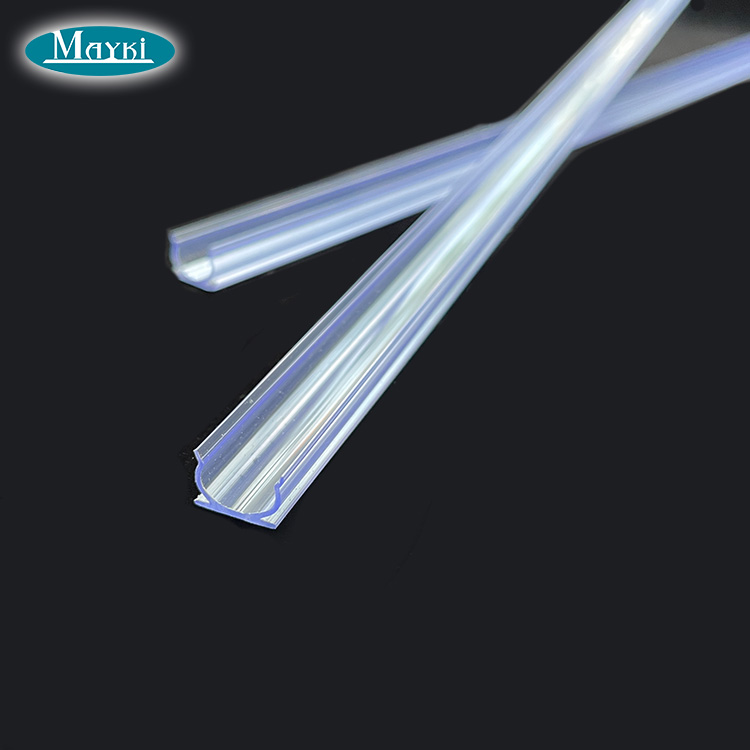

  • Clear U-channel (to fix the fiber optic cable, 1m per piece).

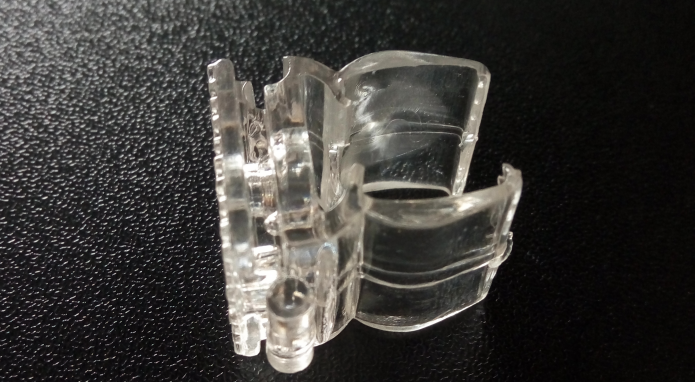

  • Fiber optic clips (Plastic clips to fix the cable, 1pc per meter).
  • Hot Knife (designed to cut fiber cable completely flush).
Specification Details
Item Type LED Fiber Optic pool perimeter light
Fiber Cable MSOF-42*1.0/0.75mm SK level side glow fiber
Control Mode RF remote controller + (DMX for option)
Color Wheel Standard 6 color / Twinkle 6 color / Twinkle white
Light Effect RGBW color changing / Twinkle RGBW color / Twinkle white
Light Engine 40W/80W waterproof LED 2700/3000/4000/6000k color temperature with fan
Fiber Length 10/20/30/40/50m (Customize according to your pool size)
4-Button Remote Speed adjust button, dimmable button, program preset button (no DMX)
15-Button Remote Speed adjust button, dimmable button, program preset button, etc. (with DMX)
LED Brand CREE chip LED
IP Rating IP43
Accessory Hot knife + U-channel + Fiber optic Clip
Usage Pool side light, media room side light, cinema room side light, etc.

Premium Quality & Certification

Trustworthy product quality with a 1-2 year warranty period.

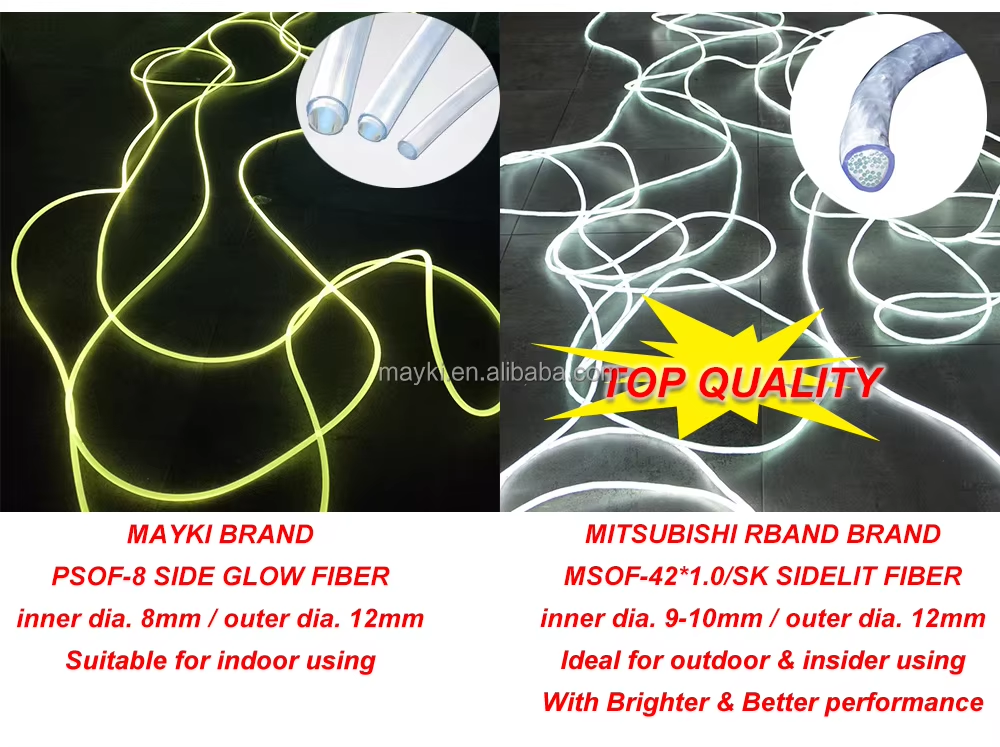

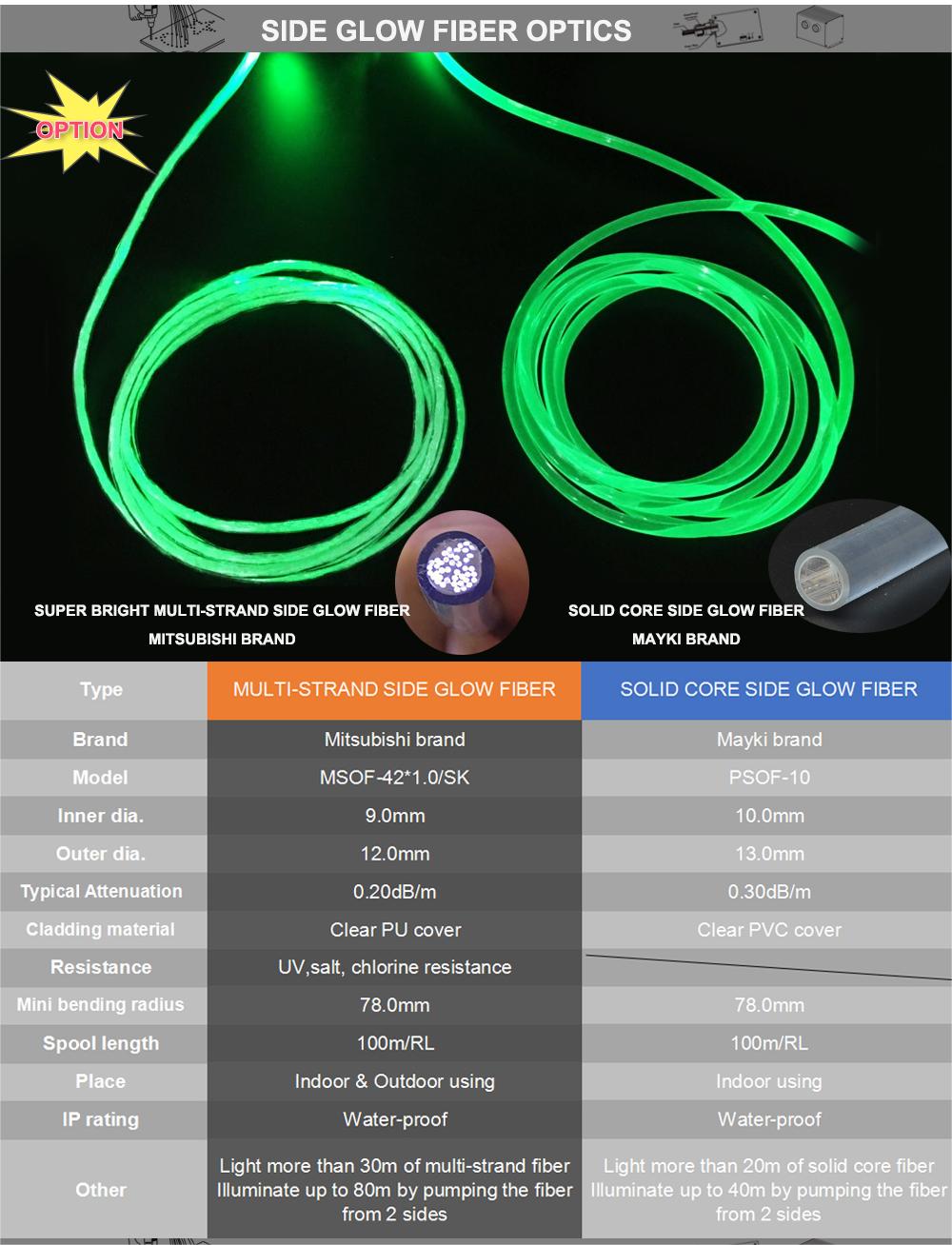

Fiber Optic Cable Construction

Fiber Optic Cable Specifications

MSOF-42*1.0/0.75mm (42pcs 1.0mm/0.75mm multi-strand side glow fiber optic cable with clear PU cover)

  • SK level material (Japan Mitsubishi brand compatibility) with UV, salt, and chlorine resistance.
  • Highly efficient low light attenuation: 0.20dB/m.
  • Inner diameter: 9mm-10mm | Outer diameter: 13.0mm (100m/roll).
  • Fully suited for both indoor and outdoor use.

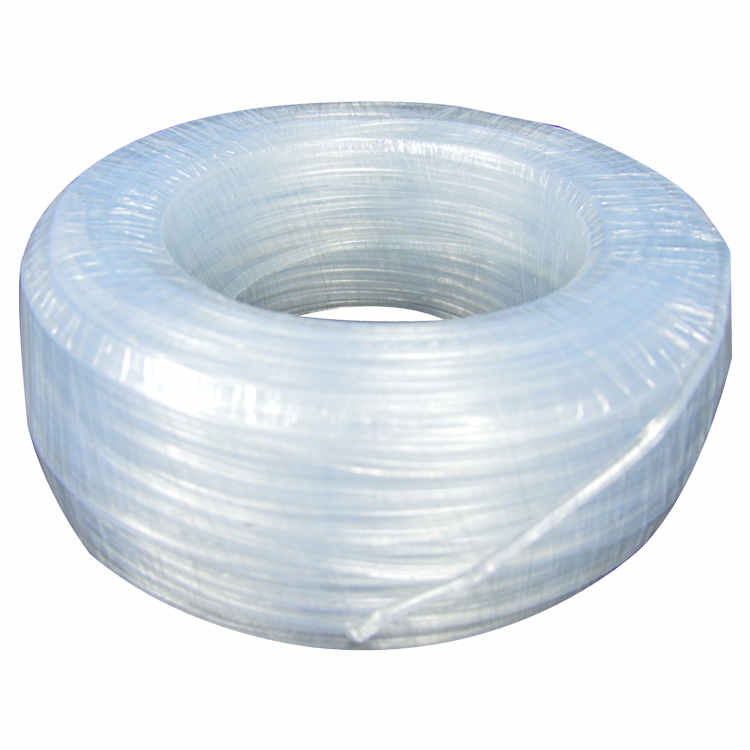

Fiber Optic Cable Coils

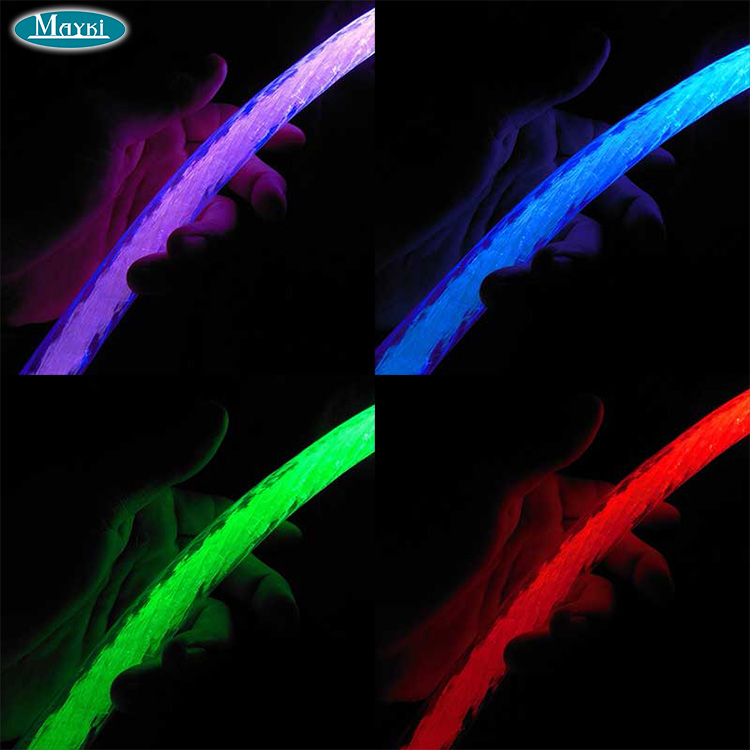

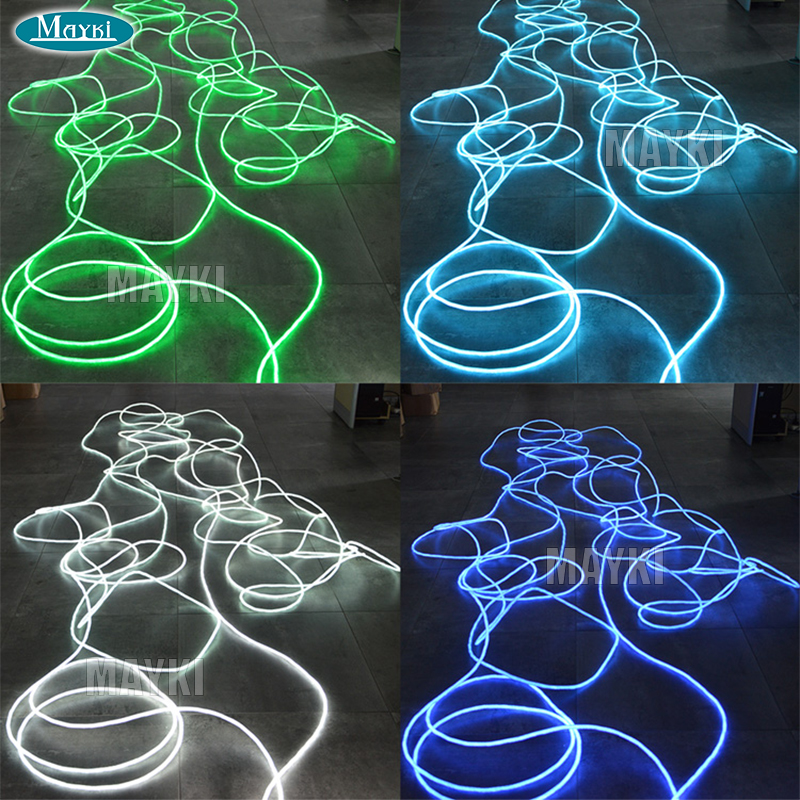

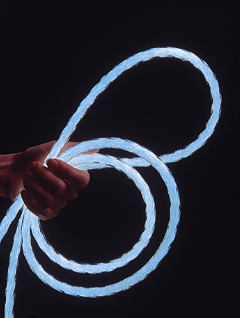

Side Glow Color Display
Pool Project Integration 1
Pool Project Integration 2

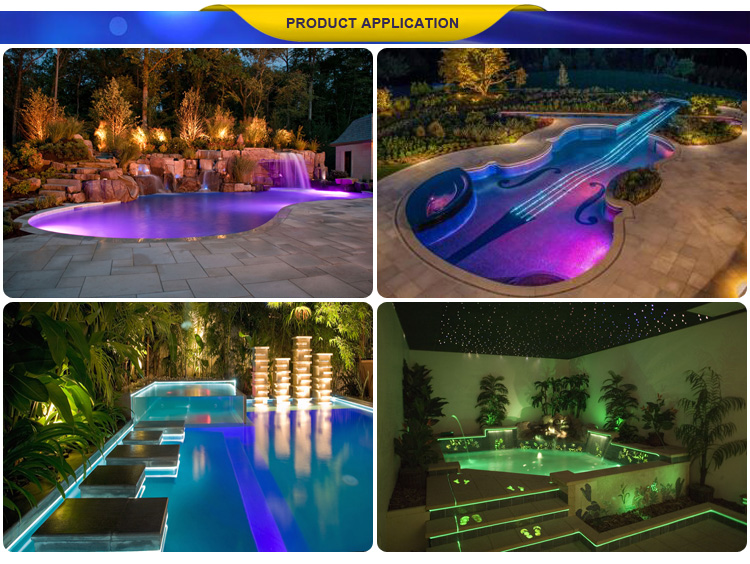

Product Application

Fiber optic technology can be applied to a variety of creative scenarios, including pool perimeters, starry ceiling effects, and accent designs.

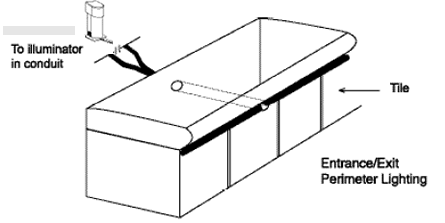

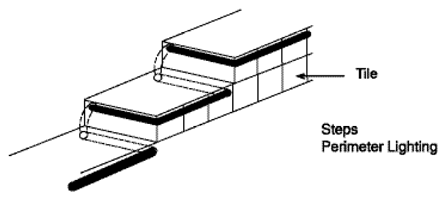

Application in Swimming Pool Perimeter
Application in Starry Sky Design

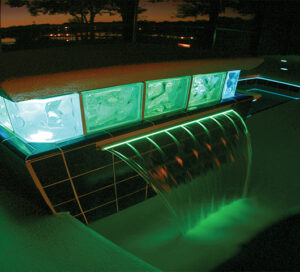

Application in Outdoor Decking

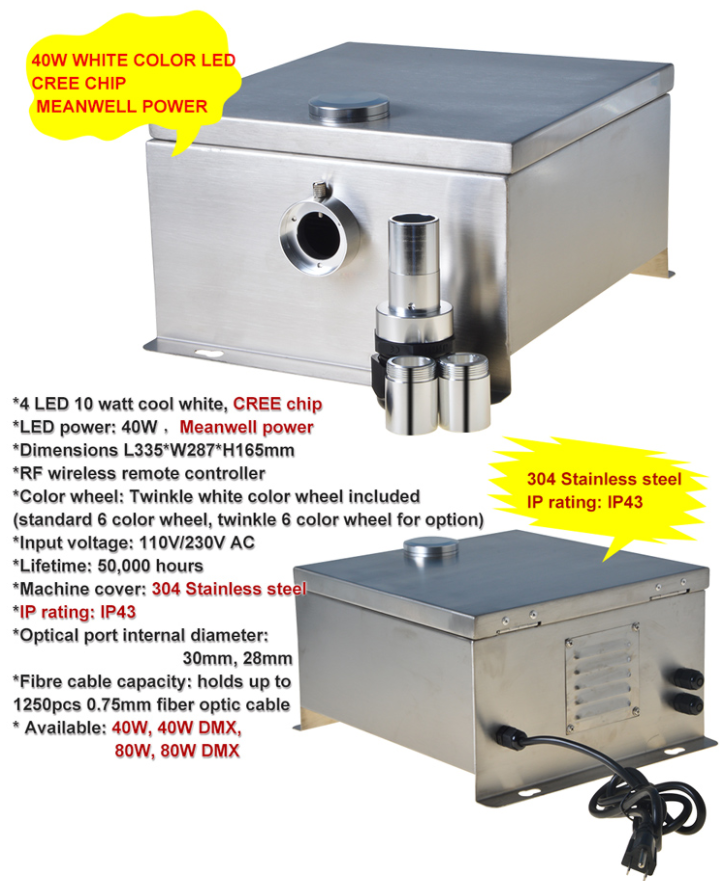

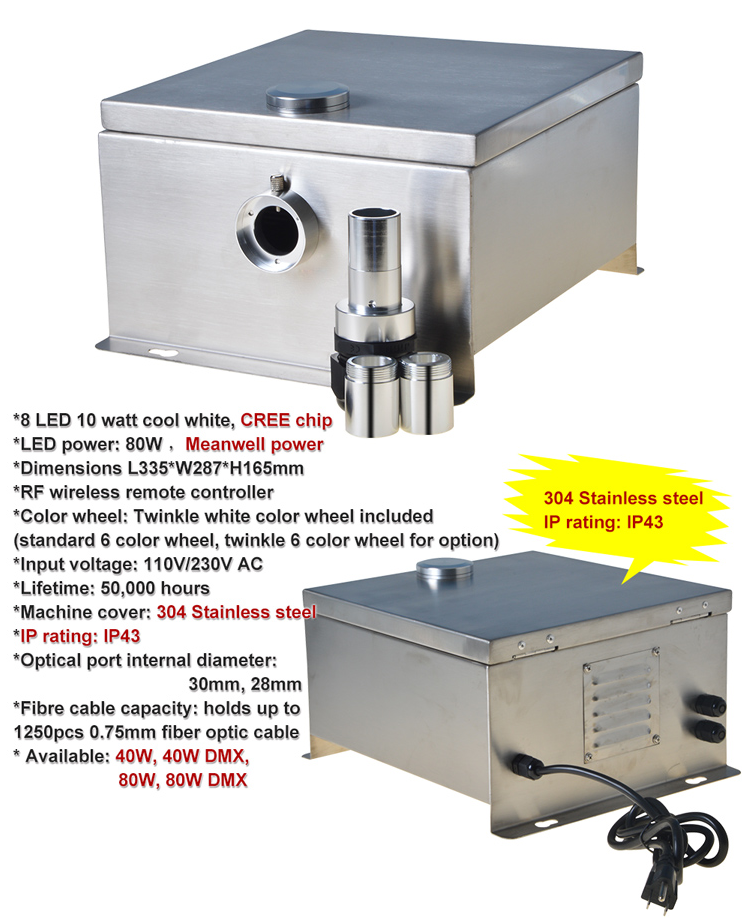

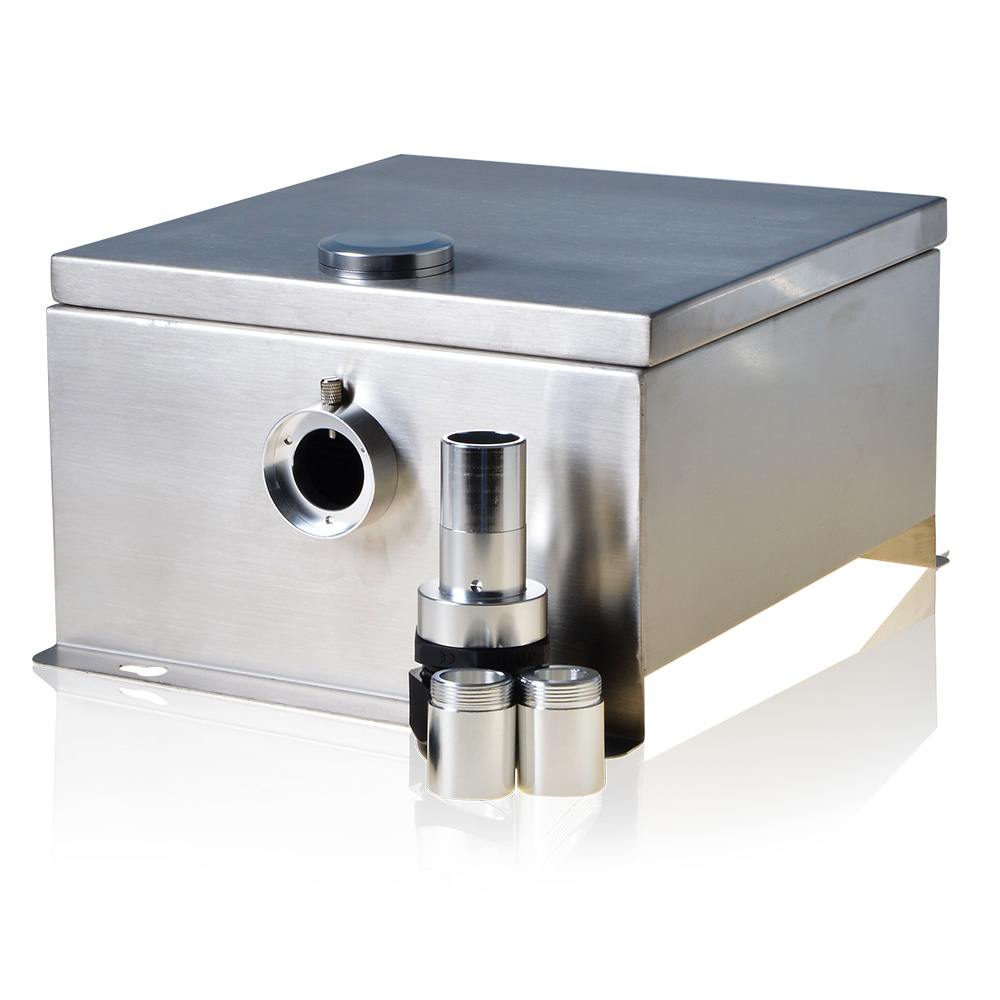

Fiber Optic Light Engine

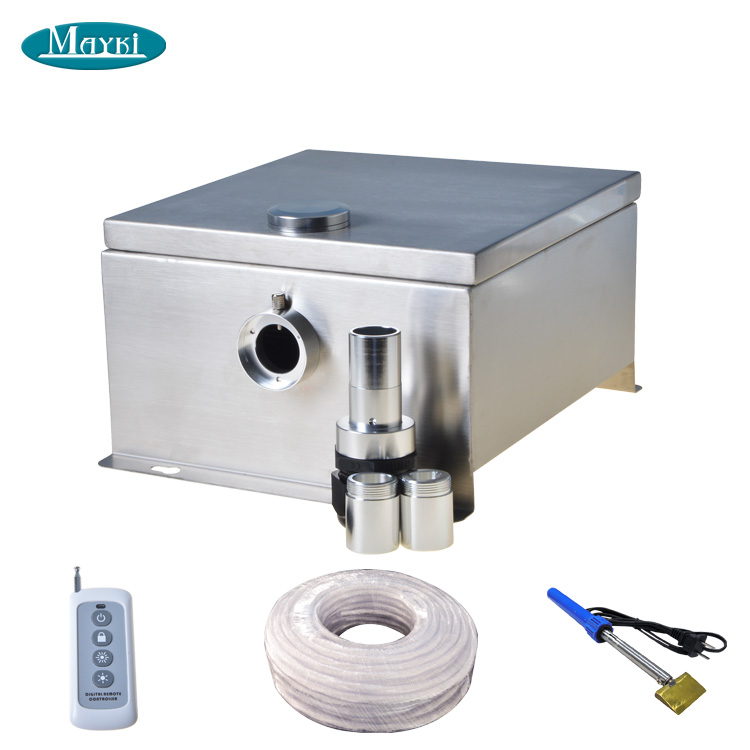

Fiber Optic Light Engine Case

Engine Features

  • 80W/40W waterproof white LED utilizing reliable Cree chips.
  • Equipped with high-performance Meanwell power supply.
  • Standard 6 color / Twinkle 6 color / Twinkle white color wheel.
  • Aperture size: Φ30mm | Enclosure: Stainless steel case (IP43 rating).
  • Dimensions: L335 * W287 * H165mm.
  • AC 220V power with EU/AU/UK/US plug options available.
  • Output: 6100 lumens, 6000K color temperature (2700/3000/4000/6000K optional).
  • Wireless operation via RF Remote Controller + optional DMX features.
Light Engine Engineering Details
Light Engine Light Source Area
Engine Inner Setup
Engine Connecting Connectors

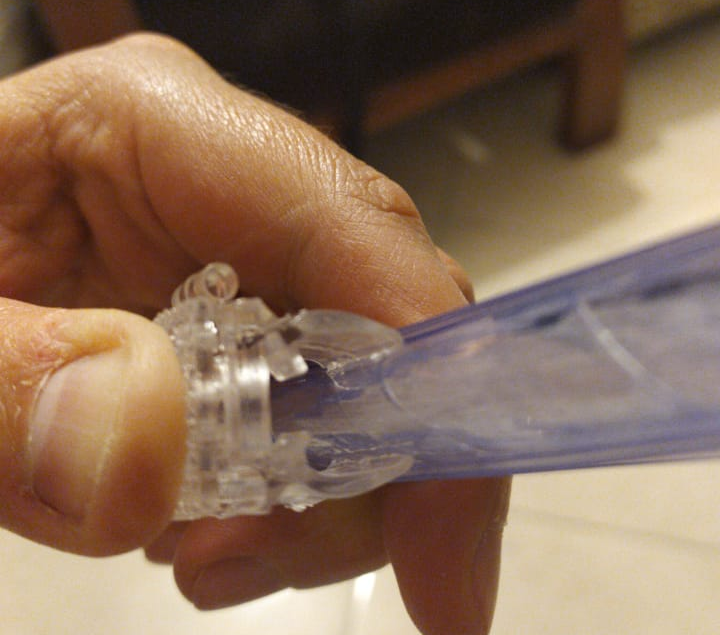

Fiber Port System

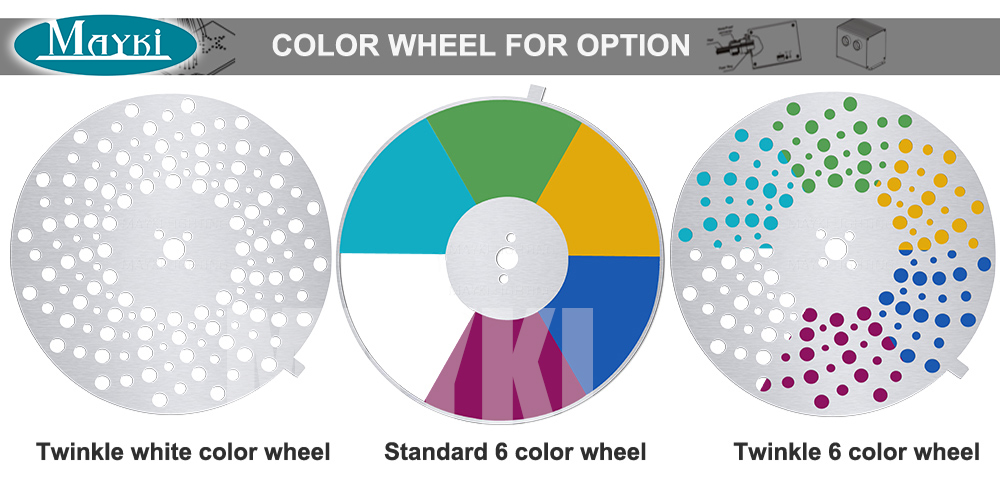

Custom Color Wheel Discs

Select the optimal wheel configuration for your desired lighting dynamics:

Color Wheel Choice 1
Color Wheel Choice 2
Color Wheel Choice 3

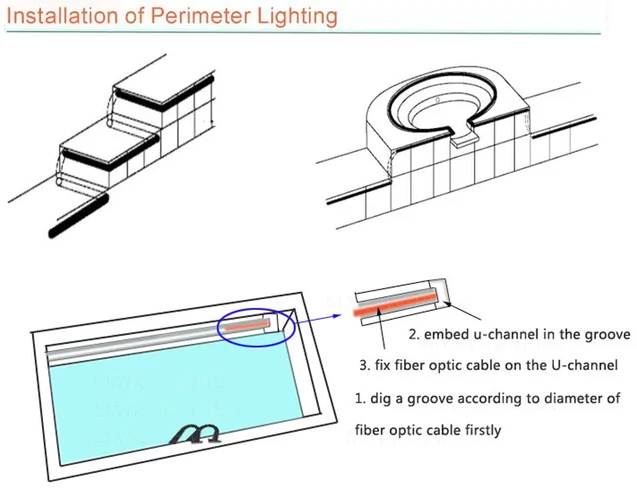

Mounting Track Installation profile
Installation Clips detail
Fiber Guide Assembly Phase 1
Fiber Guide Assembly Phase 2
Finished Pool Perimeter Output

Manufacturing Processes & Quality Checks

Factory Production Department
Testing and Assembly Line
Final Quality Inspection Area
International Quality Certifications 1
International Quality Certifications 2

Hot Sale Model

Popular Pool Light Model

Frequently Asked Questions

What is included in the fiber optic swimming pool perimeter light kit?
The complete kit includes a 40W or 80W waterproof LED light source with an integrated cooling fan, standard or twinkle color wheels, an RF remote controller, Bluetooth APP integration, MSOF-42*1.0/0.75mm side glow fiber optic cable, clear U-channel tracks, plastic fixing clips, and a hot knife tool to ensure flush cuts.
Is the fiber optic cable safe for swimming pool use?
Yes, the MSOF-42*1.0/0.75mm multicore side glow fiber cable features a clear protective PU cover. It is fully resistant to UV rays, salt water, and chlorine, making it highly durable and completely safe for wet or underwater environments.
How can I control the lighting effects?
The system can be controlled easily using the included RF remote controller or via a mobile application via Bluetooth. DMX control options are also available for users who want to integrate the lights into a centralized home automation system.
Can the length of the fiber optic cable be customized?
Yes, our kits offer lengths of 10m, 20m, 30m, 40m, and 50m. Cable lengths can be customized directly to match your swimming pool's specific perimeter layout and dimensions.
What are the technical specs of the waterproof light engine?
The light engine relies on a Cree chip LED with a Meanwell power supply, generating up to 6100 lumens of light. It features an IP43 rated stainless steel case and operates on 220V AC, with plug options for EU, AU, UK, and US outlets.
Do these lighting kits come with a product warranty?
Yes, all of our premium fiber optic pool perimeter light systems are backed by a trustworthy 1 to 2-year warranty period for peace of mind.
