Main Features

• Compact structure, small occupy area, convenient installation.
• Except air inhale inlet, all other parts dive into water operation, resulting in low noise.
• Inhales a large volume of air, producing finer air bubbles with a high dissolved air rate.
• No need to supply an external air source, saving blower costs and reducing project investment.

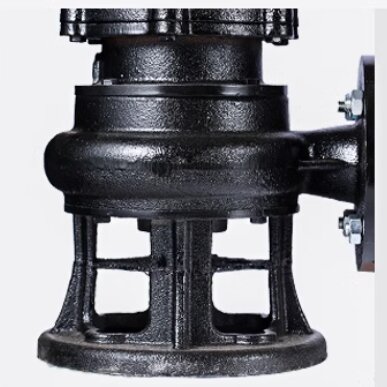

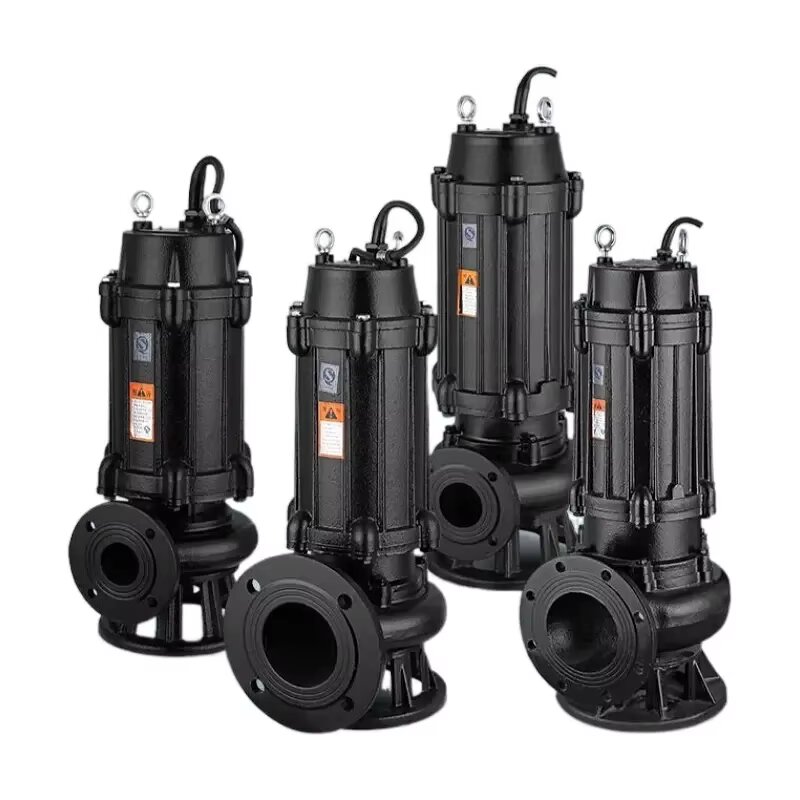

• Adopts ABS submersible sewage pump technique with a non-clogging impeller passage for safe and reliable operation.

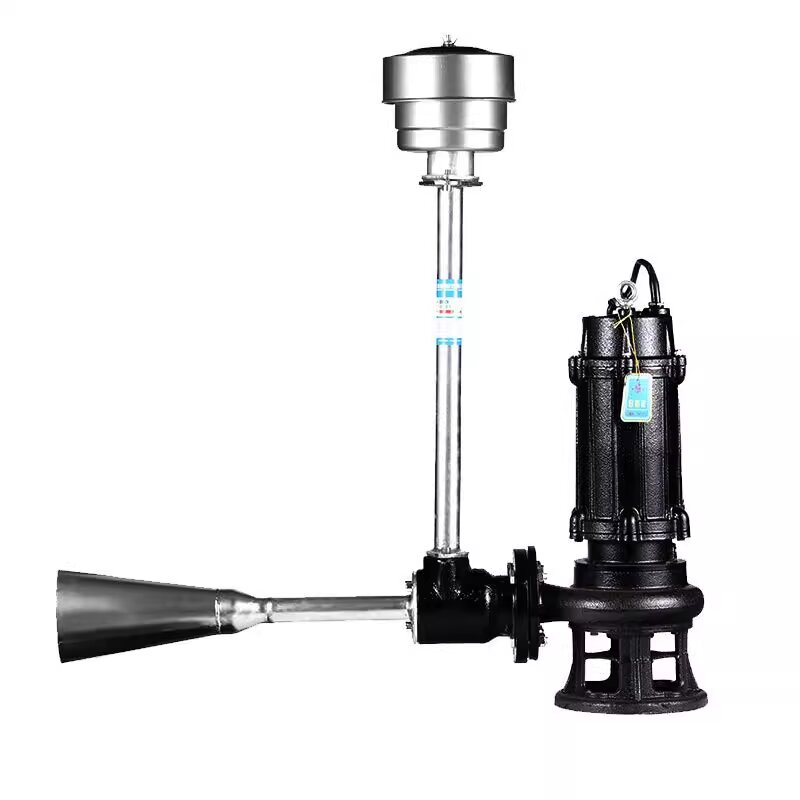

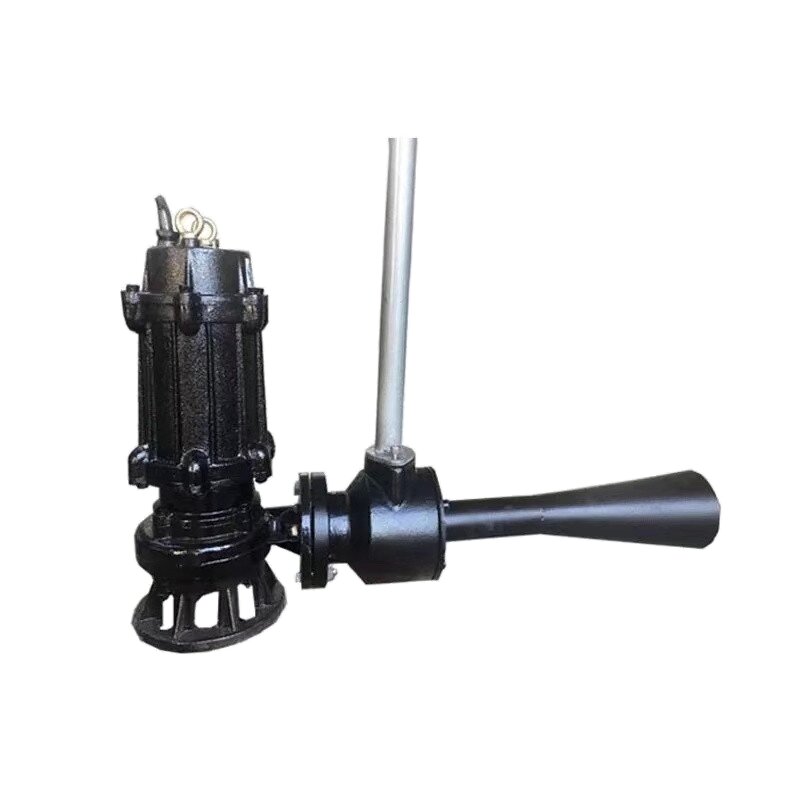

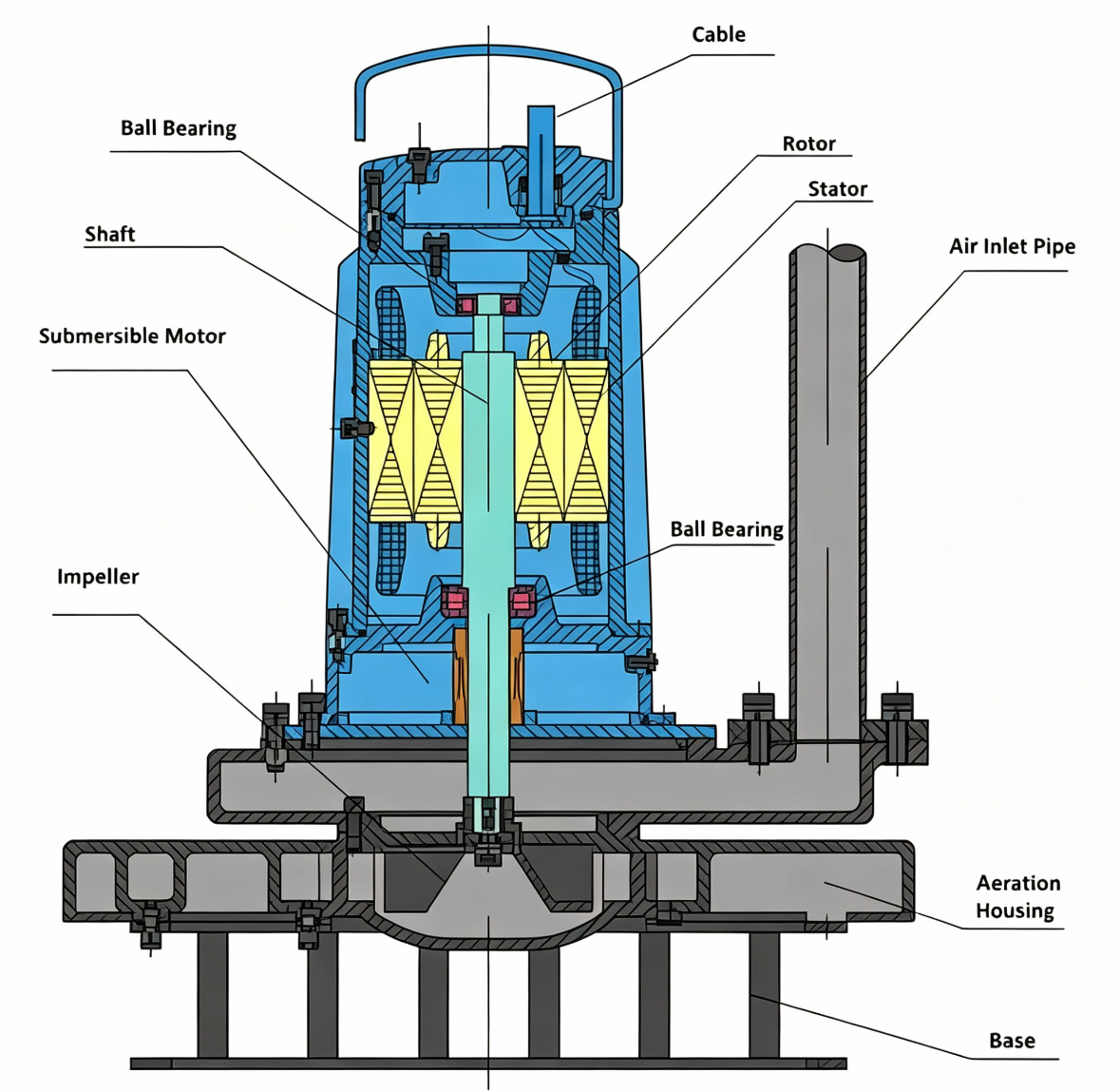

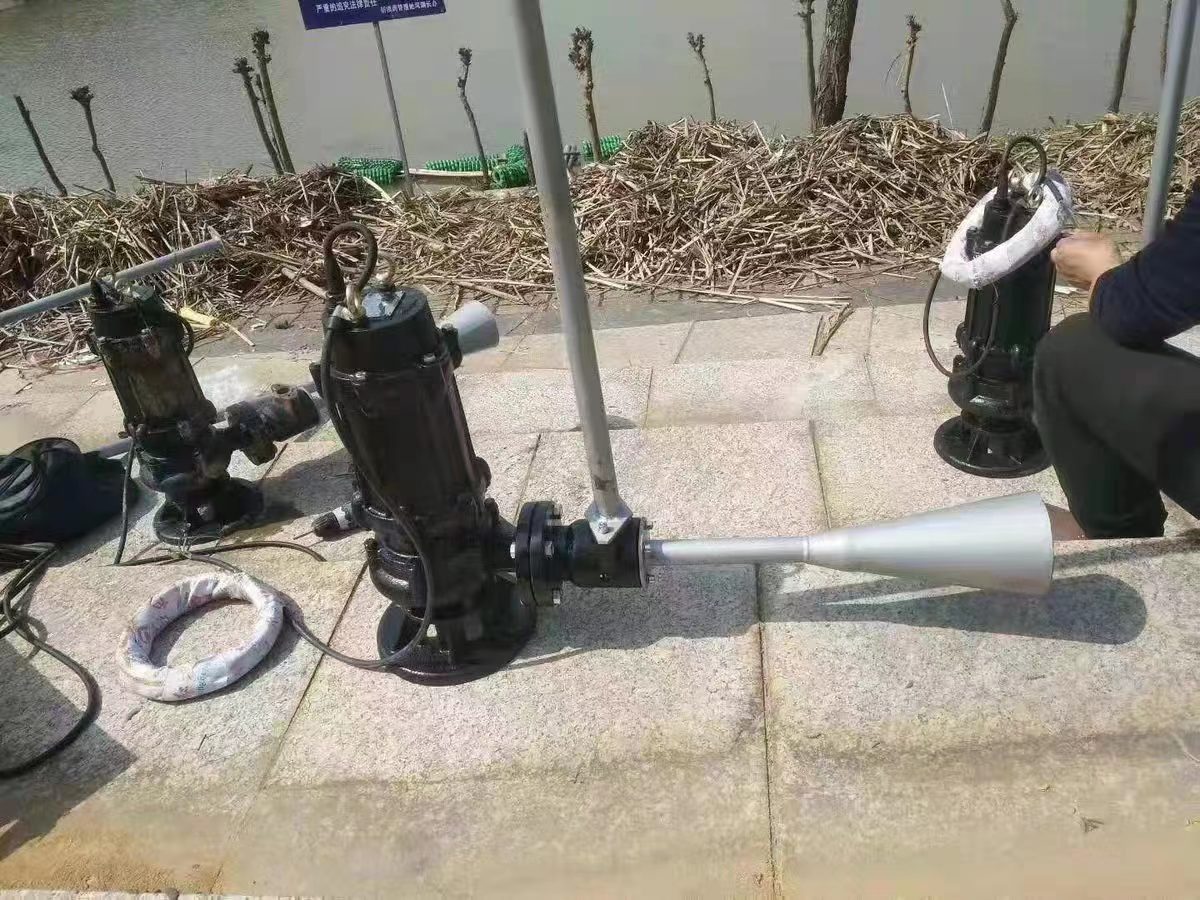

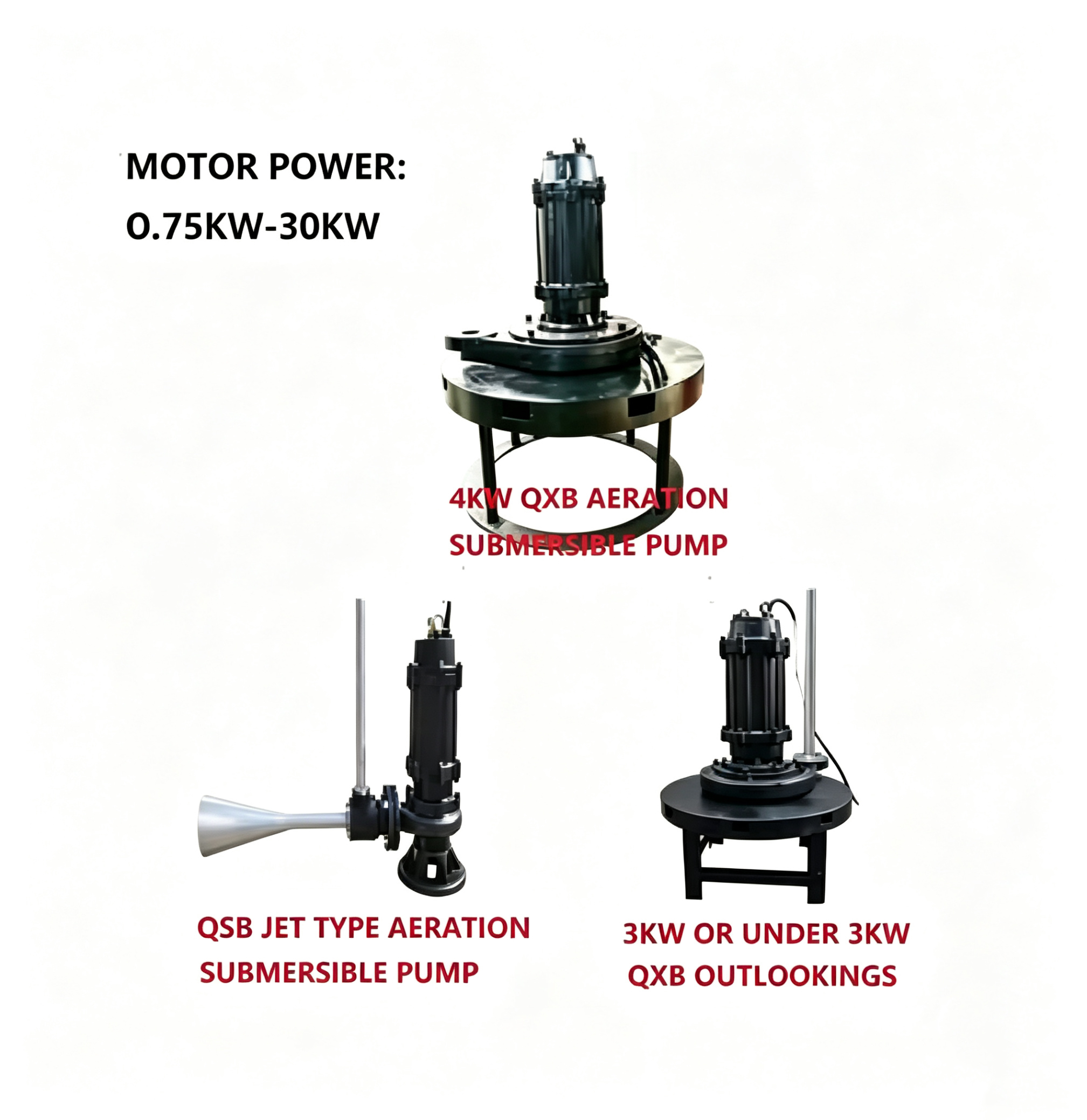

Submersible Jet Aerator

The submersible jet aerator utilizes the principle of the Venturi tube. The rotation of the impeller generates centrifugal force to extract water from the inlet end of the pump into the pump body, and delivers the liquid to the outlet nozzle at a high speed. The chamber of the internal outlet nozzle ranges from large to small. The liquid collector is accelerated, so that the liquid is injected into the mixing chamber at a very high flow rate. When high-speed liquid flows through the mixing chamber, a vacuum is formed in the mixing chamber, and a large amount of air is drawn into the intake pipe.
