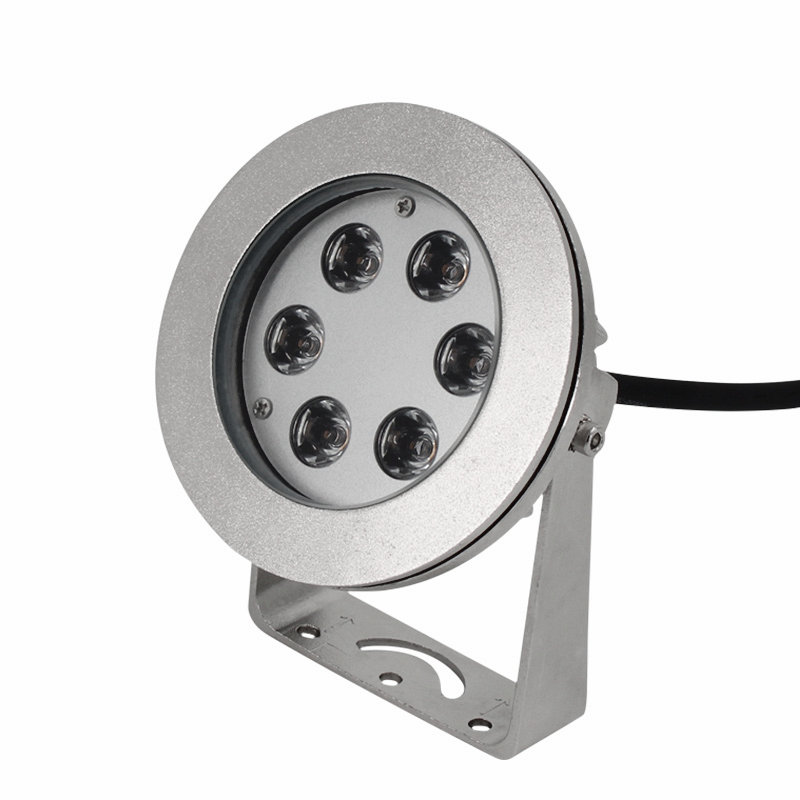

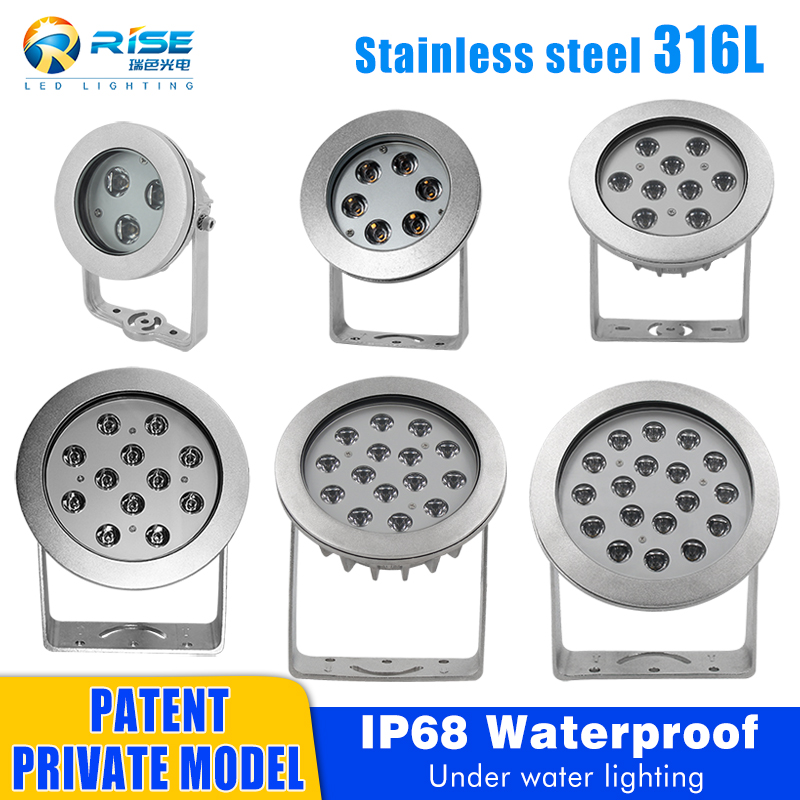

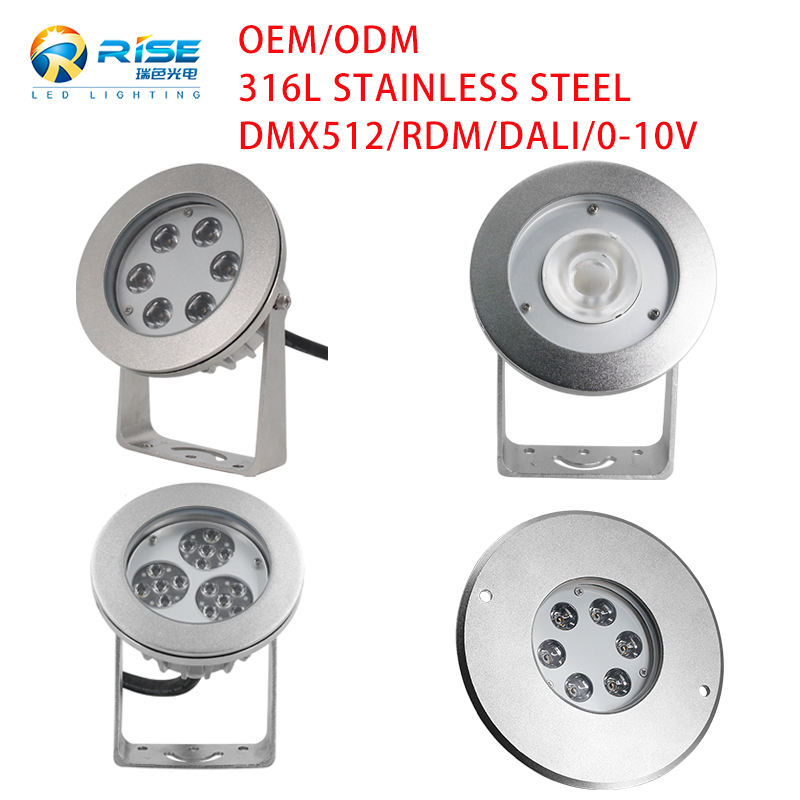

Outdoor Landscape Stainless Steel RGB IP68 24V DMX512/RDM Music Dancing Water Jet Fountain Underwater LED Swimming Pool Light

Product Description

LED Landscape Lighting Banner

Product Description

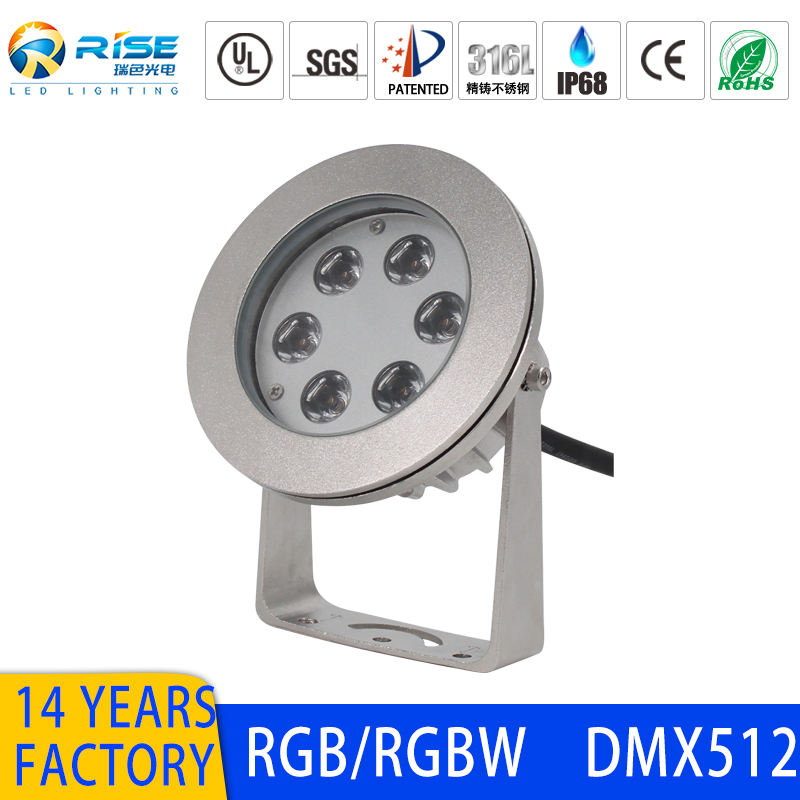

LED Stainless Steel Underwater Light Details
  • 316L Stainless Steel Front Cover & Housing: Anti-corrosion protection designed specifically for harsh underwater environments, theme parks, lake fountains, and sea salt water applications.
  • IP68 Waterproofing: Engineered for both dry and submerged applications.
  • Heavy-Duty Glass: Features high-quality 8mm thick tempered glass for maximum durability and pressure resistance.
  • Smart Driver Integration: Built-in constant current IC protection with a wide voltage driver inside the lamp body.
  • Eco-Friendly design: Friendly to the environment with no radiation output.
  • Long Lifespan: Delivers more than 50,000 hours of continuous, reliable operation.

Specifications

Model No.: RS-UW18W316X(88105) / RS-UW24W316X(88105)
Front Cover & Housing: 316L Stainless steel
Dimensions: D123 * H165mm (Max.)
Tempered Glass: 8mm thickness
LED Chip: High Brightness LED
LED Q'ty: 6pcs x 3W LED / 6pcs x 3in1 LED / 6pcs 4in1 LED
Cable Gland: Stainless steel 316L PG13.5
Driver: Constant current driver
Lens: Clear, Bead, Frosted
Beam Angle Options: 10°, 30°, 45°, 60°, 90°
Power Cable: AWG 5/18 or AWG 3/18 SOW rubber cable
Protection Class: IP68
Environment: Dry / Submerged
Mounting Hardware: Surface Mounted System
Net Weight: 2kgs with 1.5m cable
Lifetime: >50,000 Hours

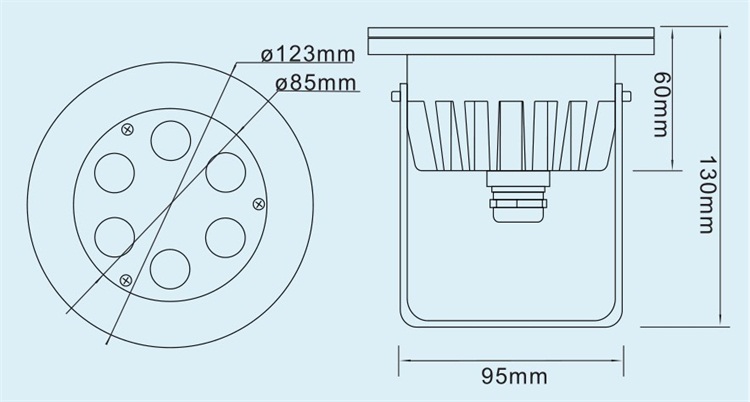

Dimensional Drawing of Underwater Light
Side View of Stainless Steel LED Light

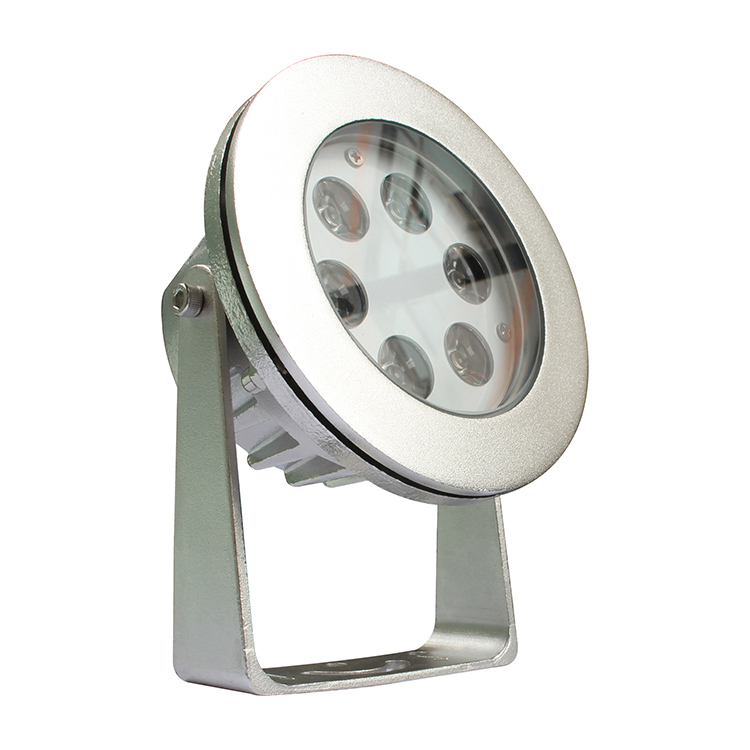

Stainless Steel Underwater Light Display

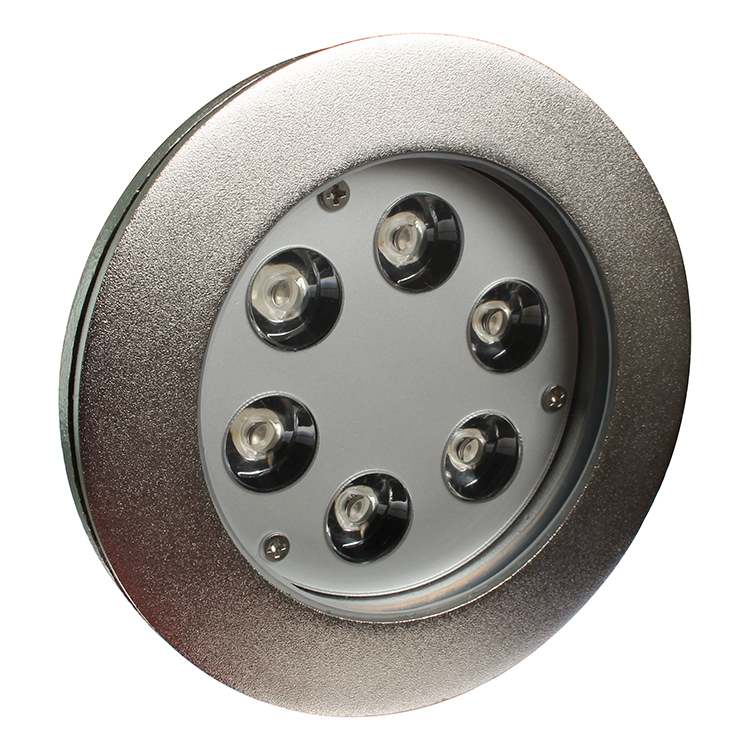

Submersible Light Fixture Details

Modular IP68 Waterproof Lighting System (OASE-Style)

  • 1 Plug-and-Play Installation: Modular design featuring IP68 quick-connectors. No complex wiring required—saving up to 50% on project labor time.
  • 2 100% Waterproof Reliability: Hermetically sealed connectors and junction boxes designed for continuous, permanent underwater submersion.
  • 3 Easy Maintenance: Swap or replace individual lights in seconds without having to disrupt the entire daisy-chained system, lowering long-term maintenance costs.
  • 4 Tailor-Made Solutions: Fully customizable cable lengths manufactured to fit your project’s exact scale and layout dimensions.
  • 5 Smart Control System: Fully compatible with DMX512 RGB controllers for programmed, synchronized, and dynamic light shows.

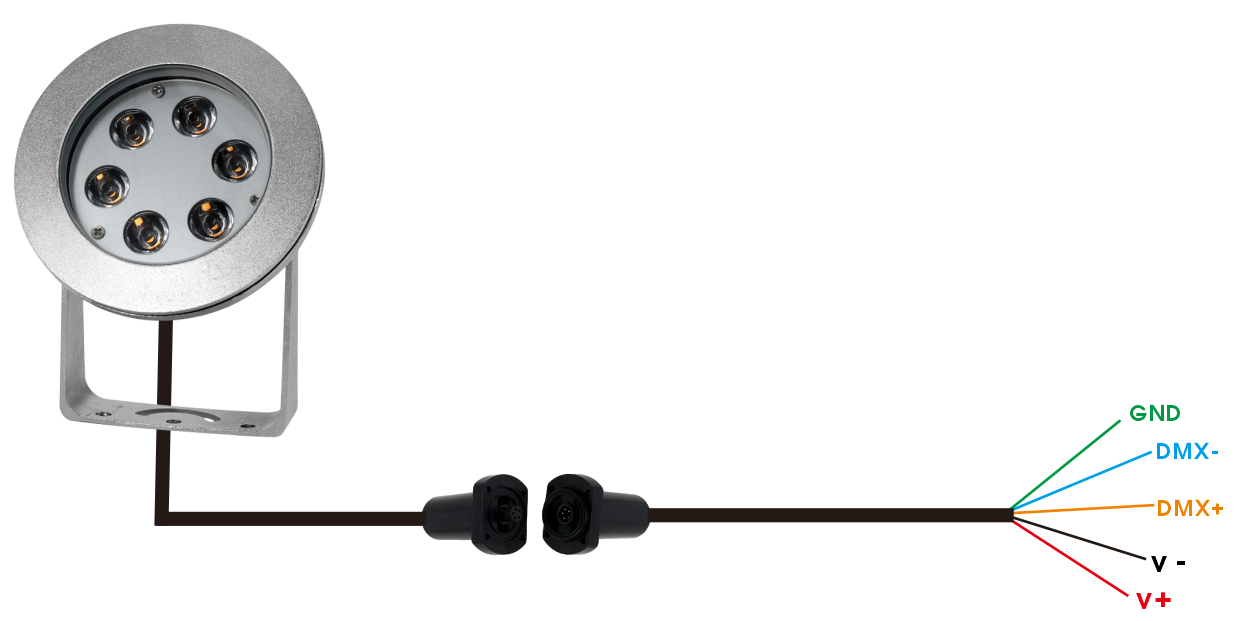

Modular Connection Diagram

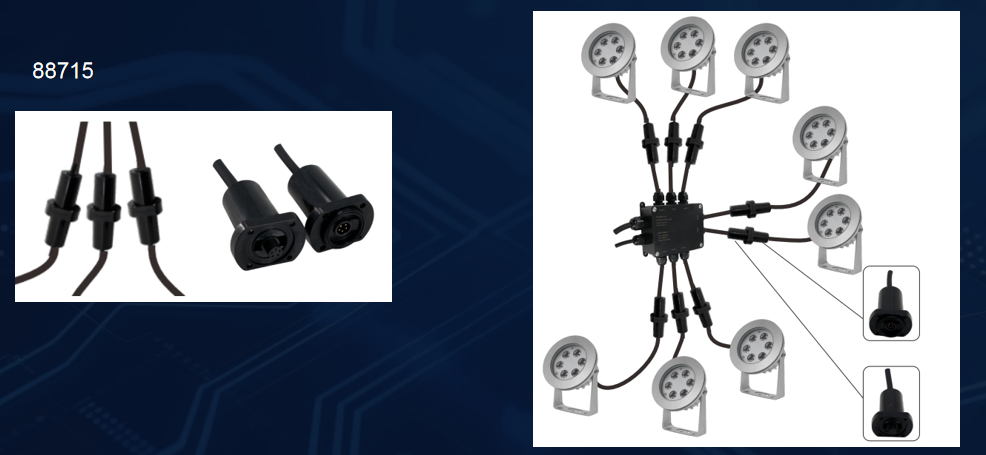

Waterproof Junction Connectors
LED Lens Beam Angle Types

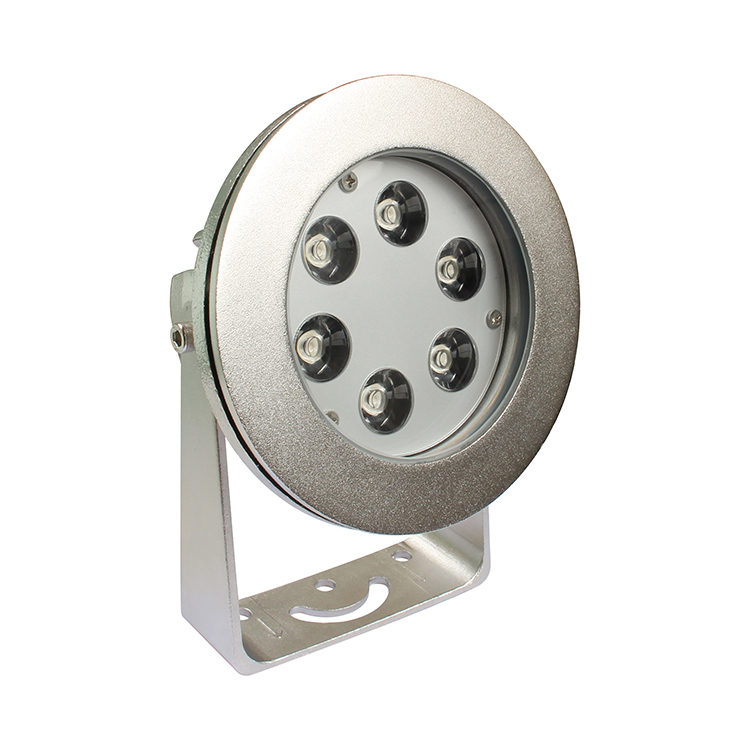

Submersible Light Installation Accessories

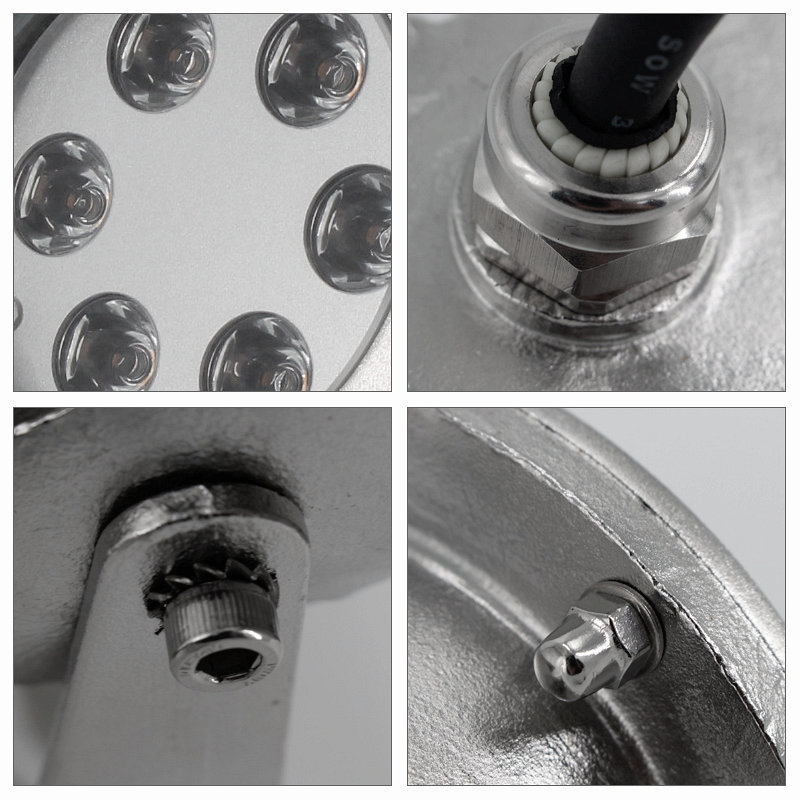

Adjustable Mounting Bracket Light

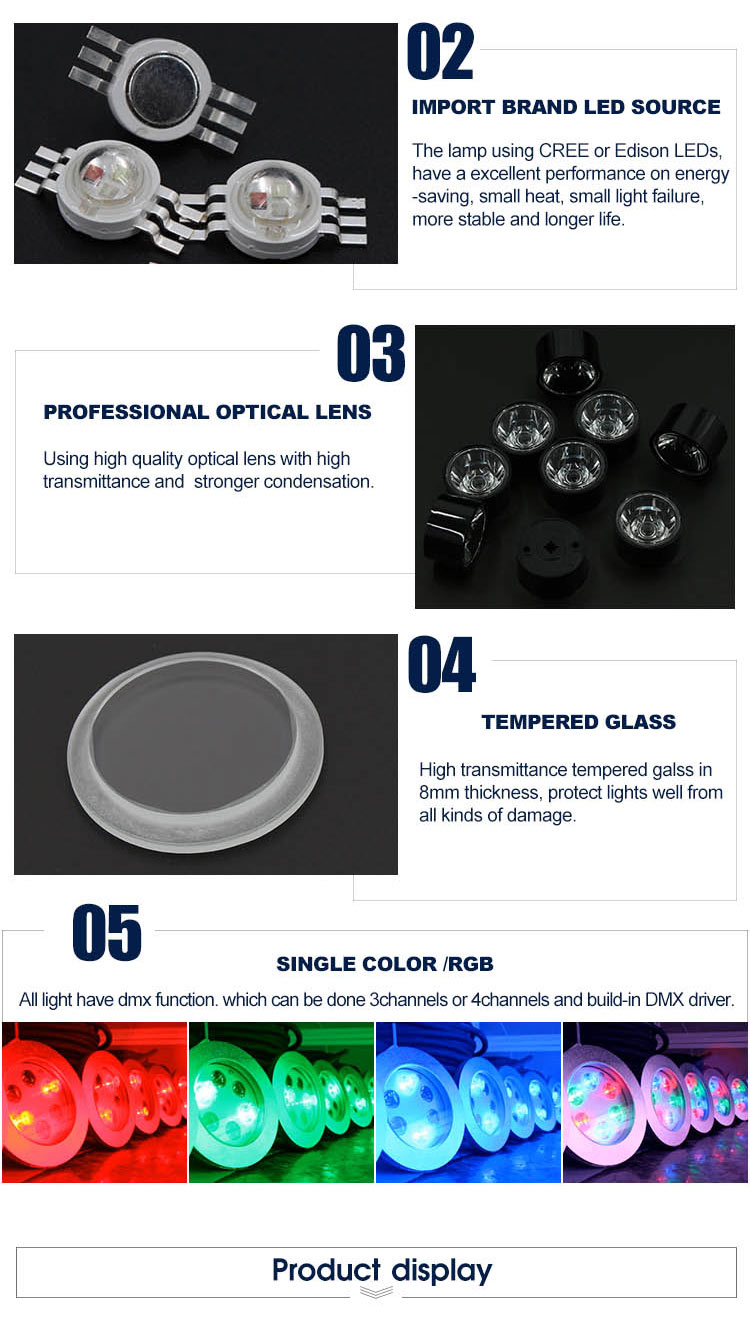

Quality Stainless Steel Construction

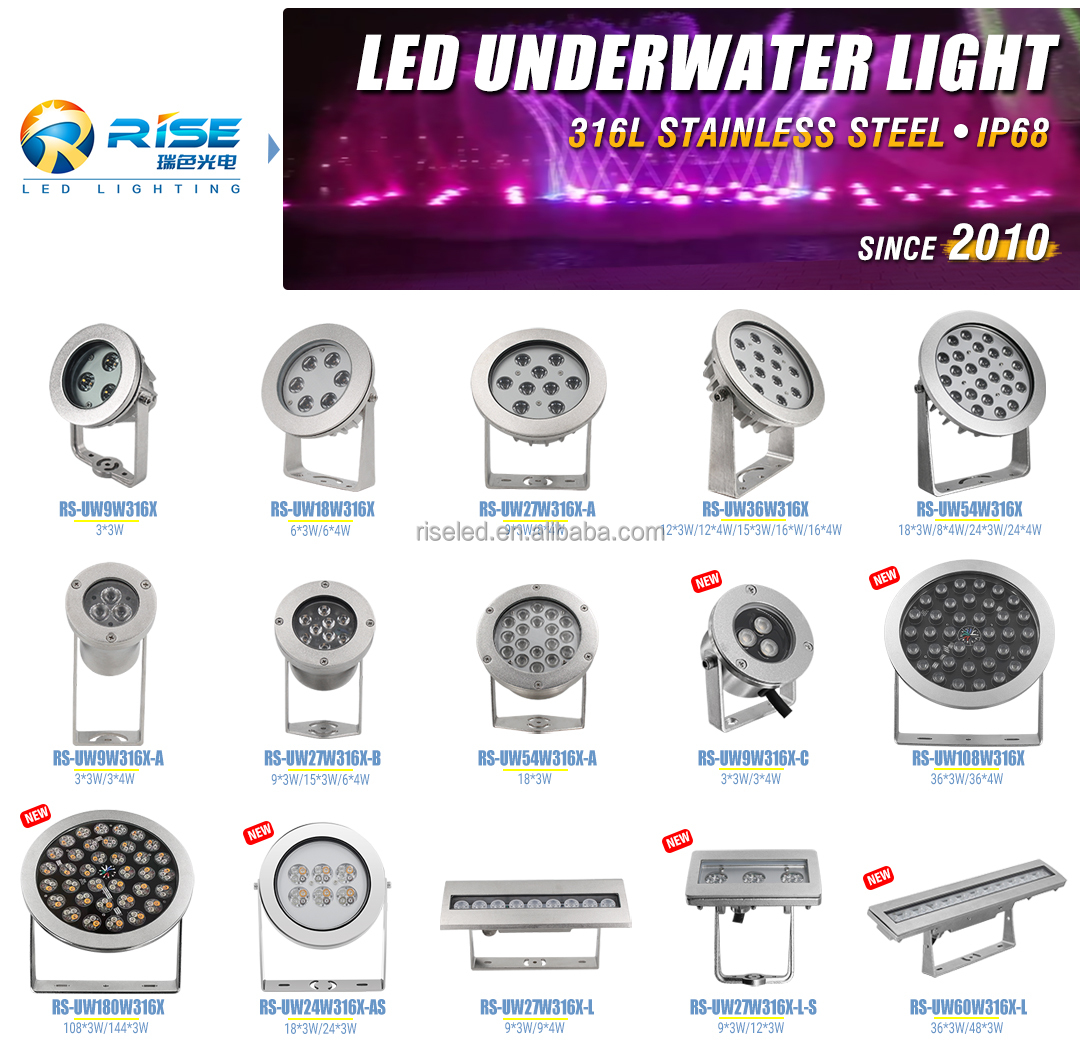

Waterproof Gland Connection Detail

Production Process

Factory CNC Machining Process

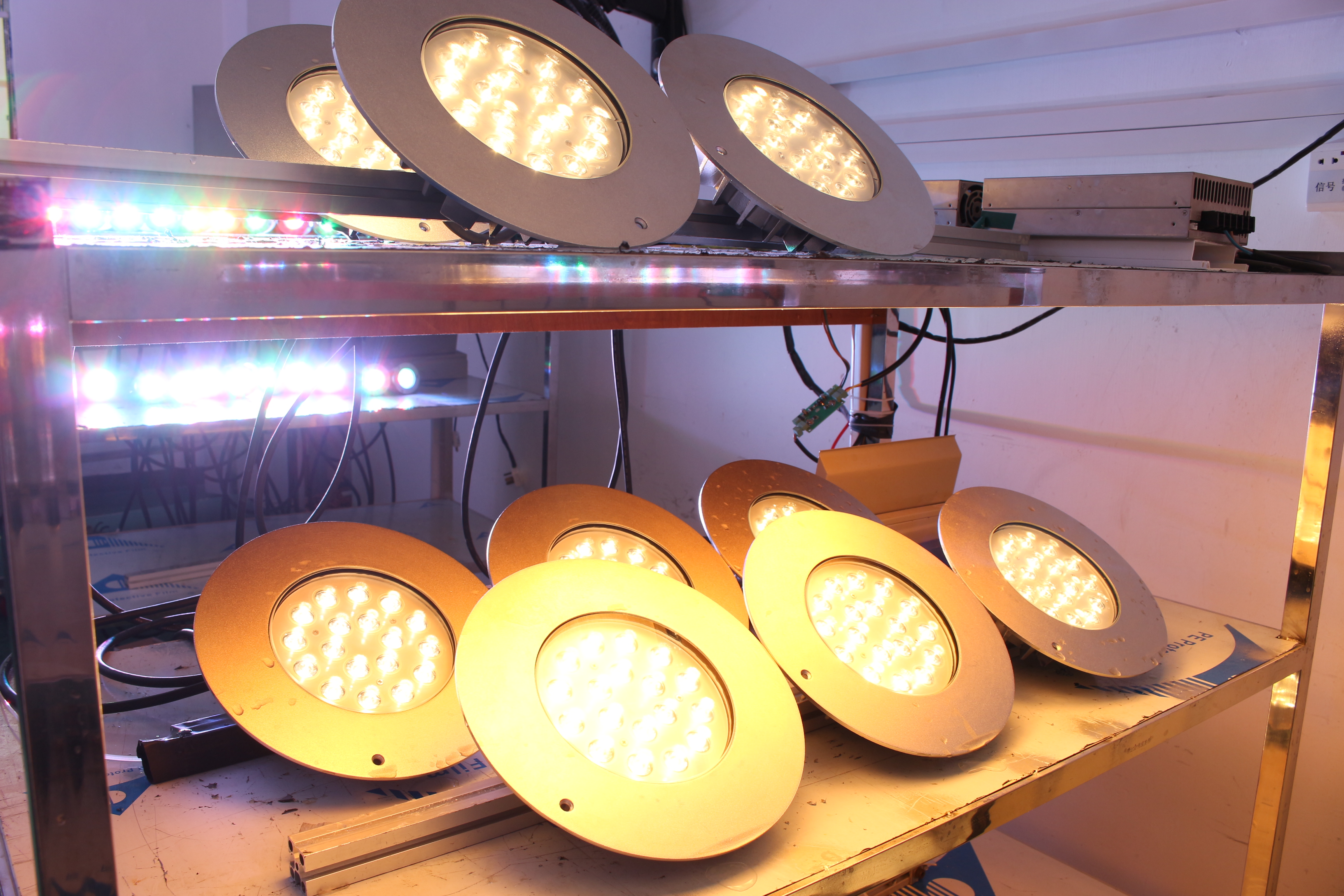

Manual Assembly of Light Components

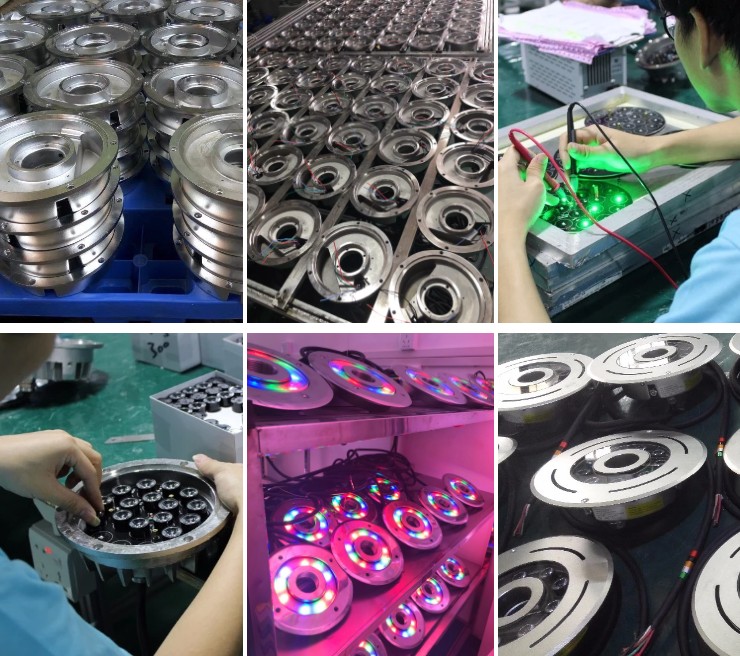

Waterproof Sealing Process

Projects Pictures

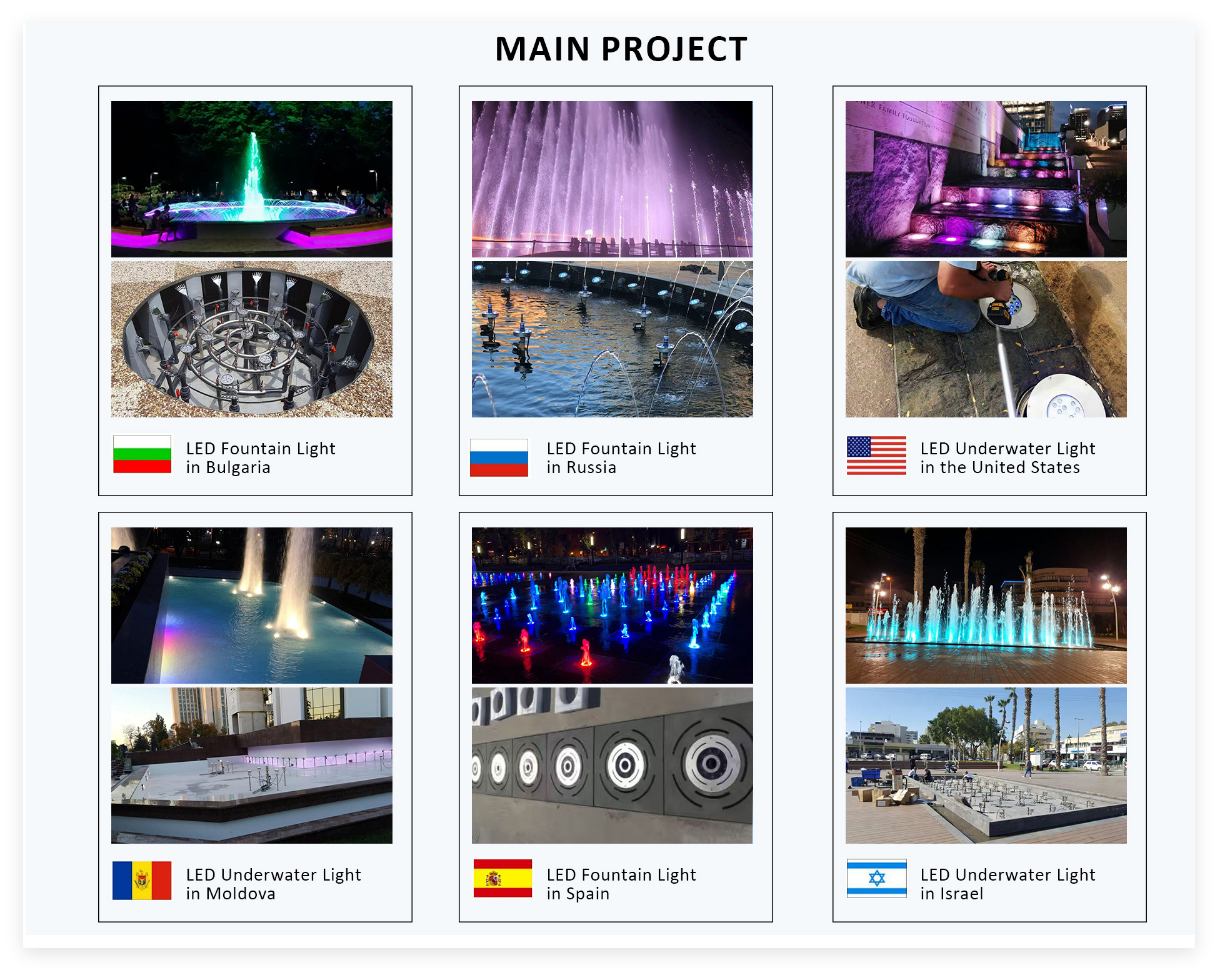

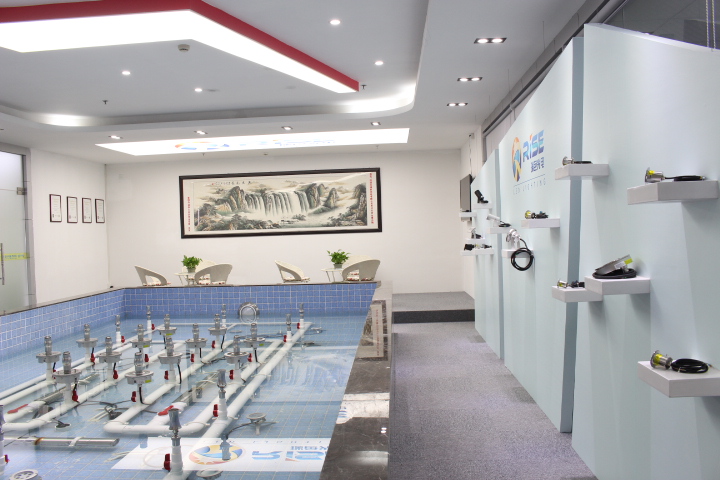

Fountain Lighting Project Showroom

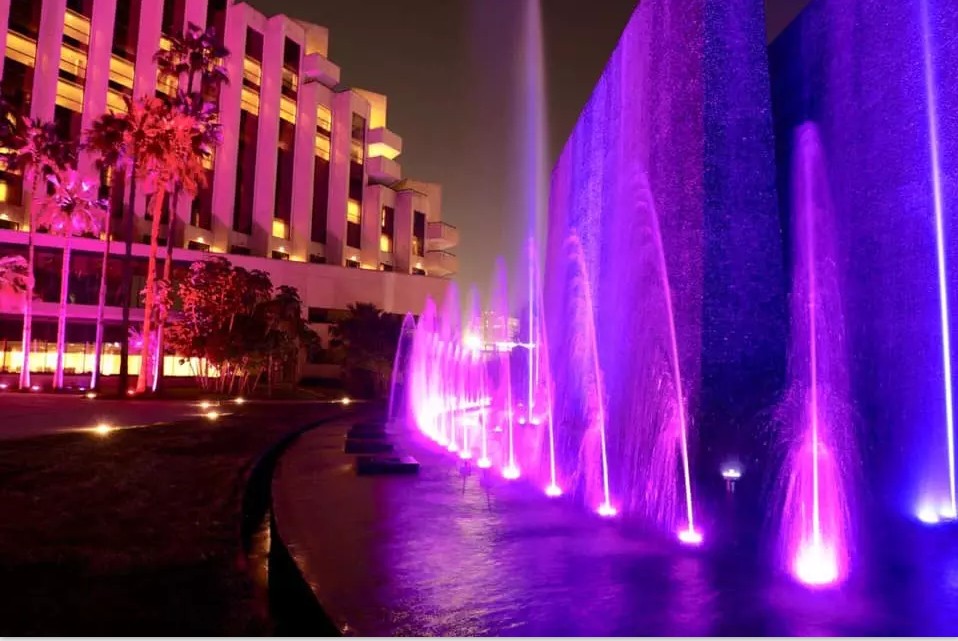

Park Fountain Colorful LED Lights

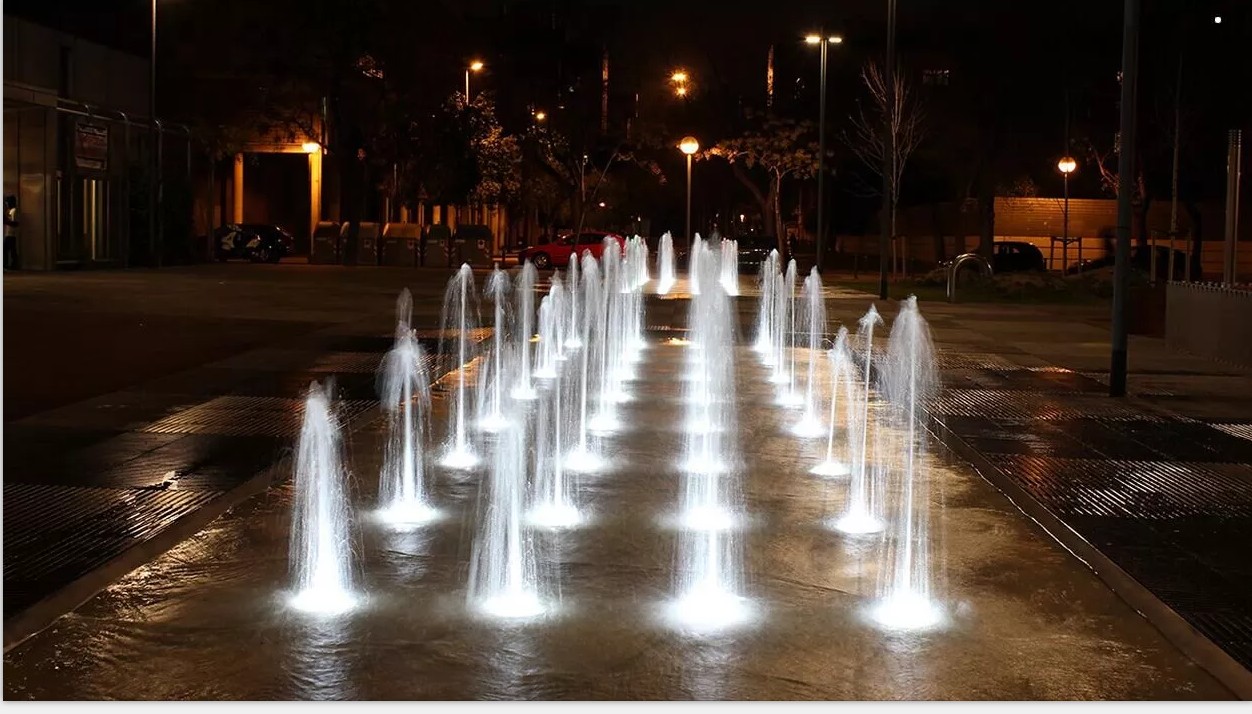

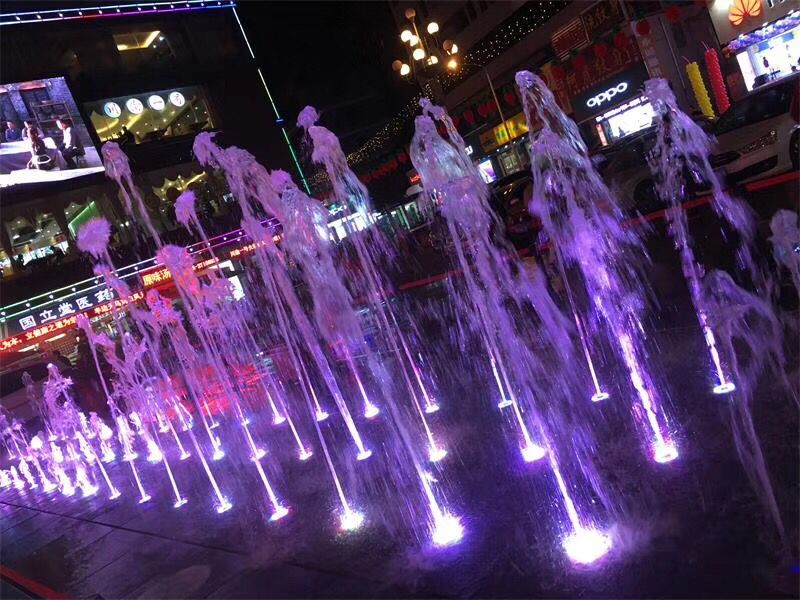

Plaza Dry Fountain Project

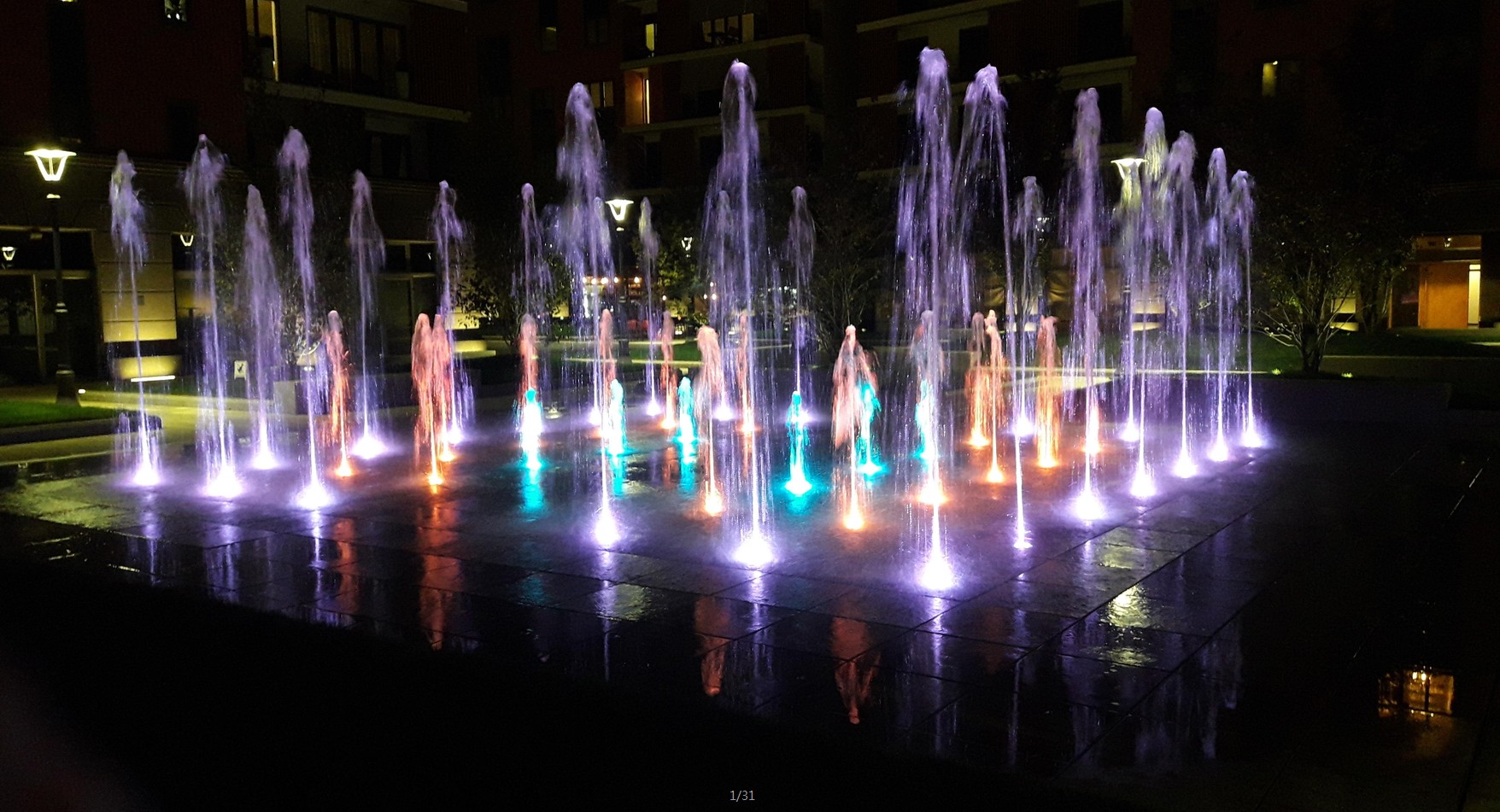

Dynamic Musical Water Fountain Lighting
Water Pool Submersible Lighting Installation

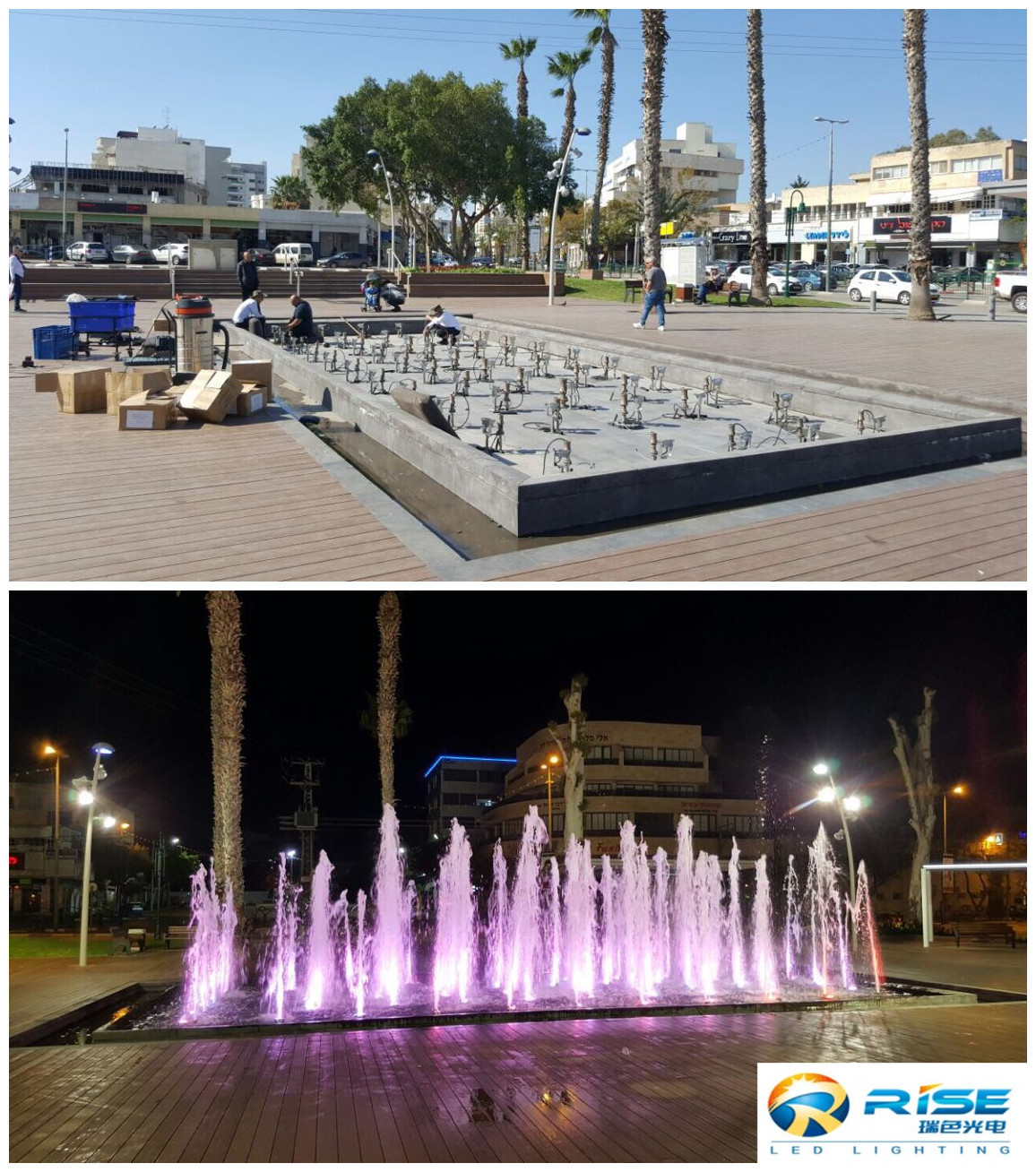

Stairway Water Feature LED Lighting

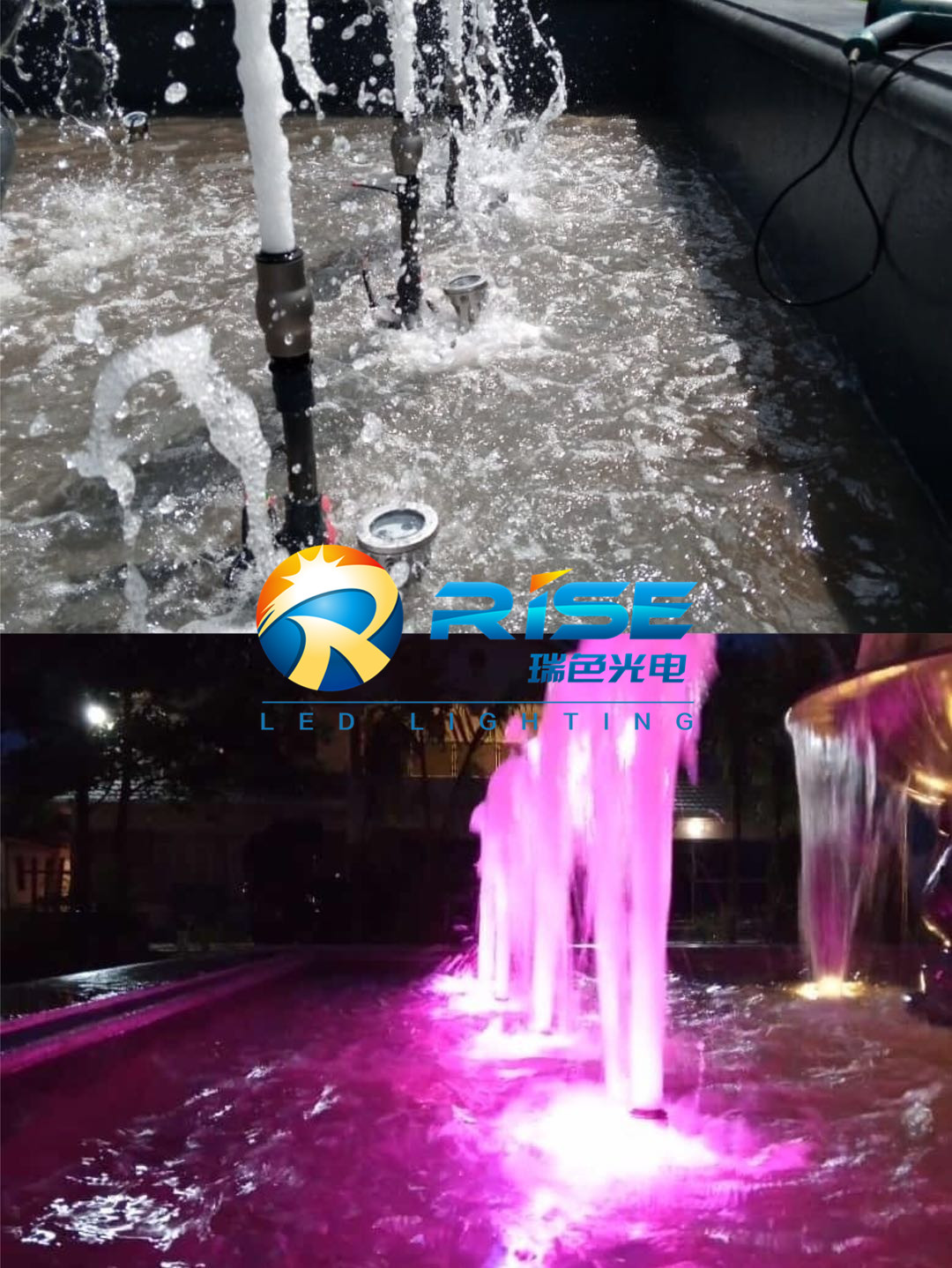

Hotel Pool Underwater Color Changing LED Lights

Feedback from our customers

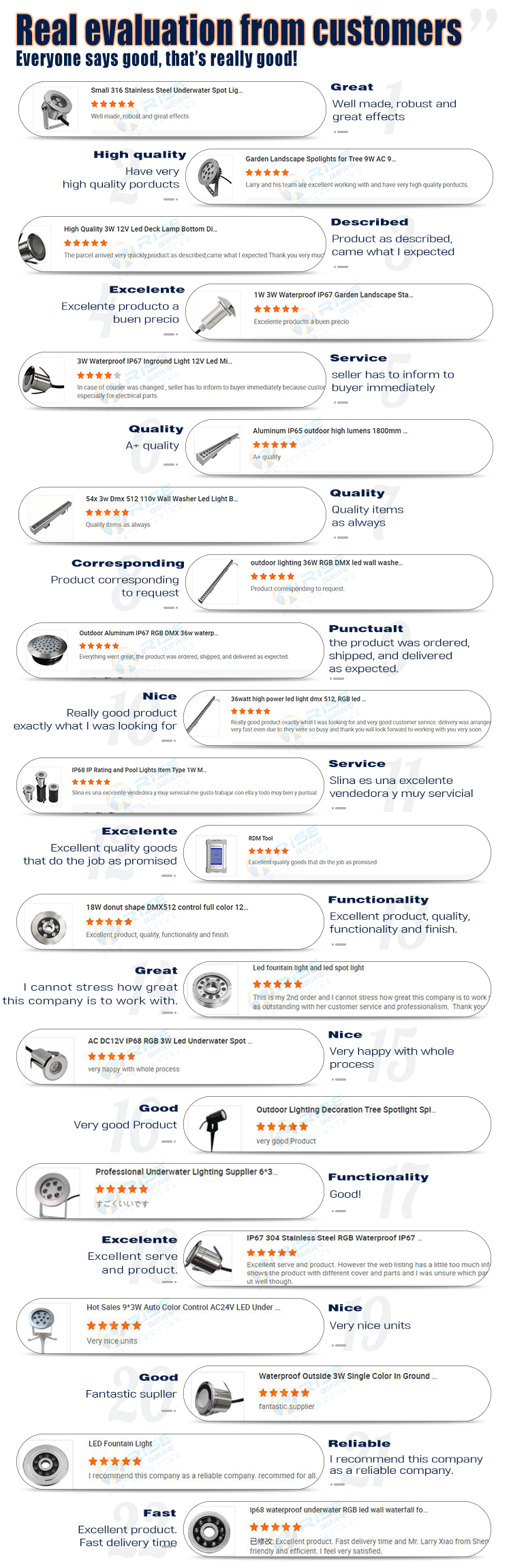

Customer Feedback and Reviews Screenshot

Company Profile

Factory R&D Center and Equipment

We are a professional manufacturer of outdoor landscape LED lighting. With many years of experience in the field, we possess abundant technical knowledge and sophisticated assembly techniques. Dedicating ourselves to the landscape industry, we continually design innovative products.

Our specialty lies in structurally waterproof 316 / 316L stainless steel LED lighting systems. Our main products include LED underwater lights, LED swimming pool lights, LED underground inground lights, LED landscape spot lights, LED brick lights, and LED wall washers. We are confident in building a long-term business relationship with our clients worldwide.

Factory Production Line

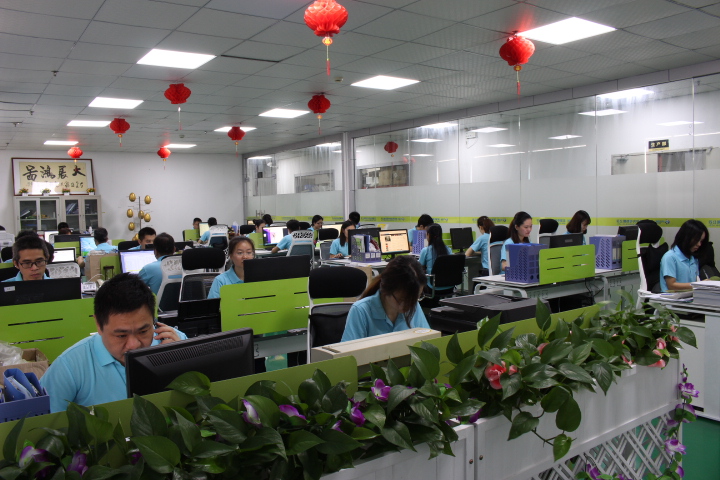

LED Assembly Operations

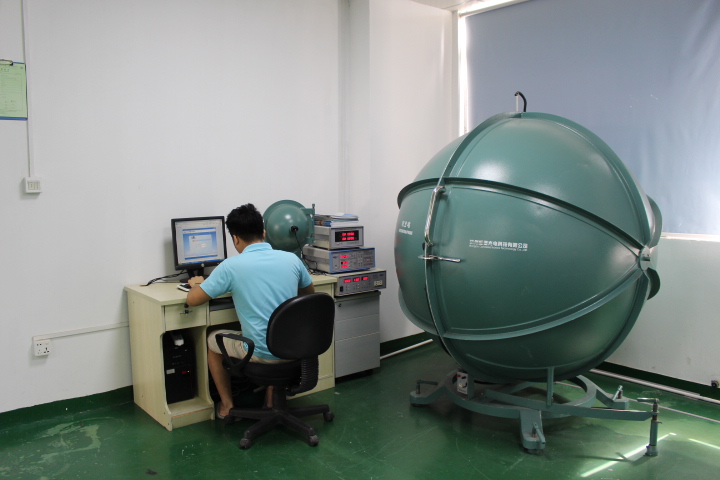

Integrating Sphere Optical Test Equipment

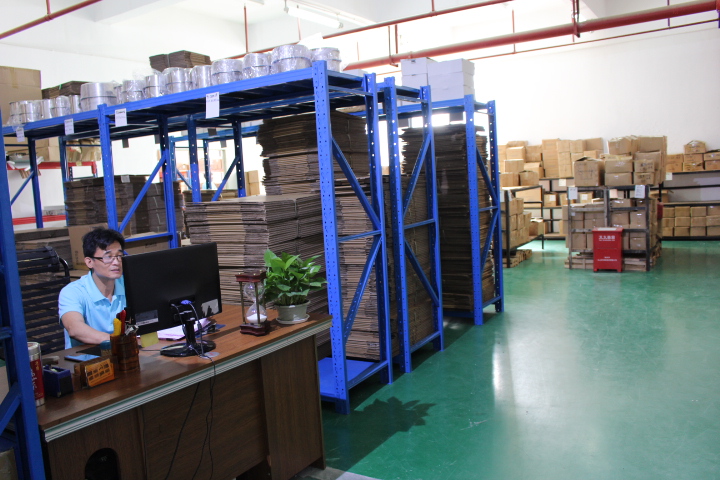

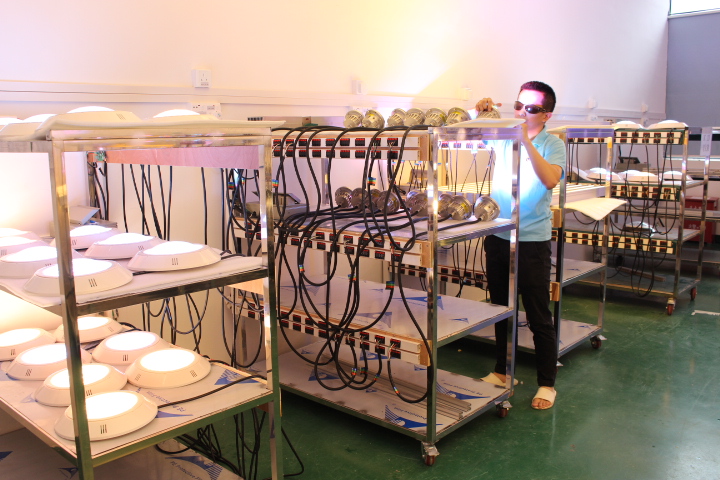

LED Aging Testing Area
High Temperature Testing Chamber
Waterproof Pressure Testing Machine

Certifications

Product Certifications CE RoHS ISO9001

Exhibition

International Lighting Exhibitions Booth
Lighting Show Booth Visitors
Product Demonstrations at Fair
Business Discussion at Booth

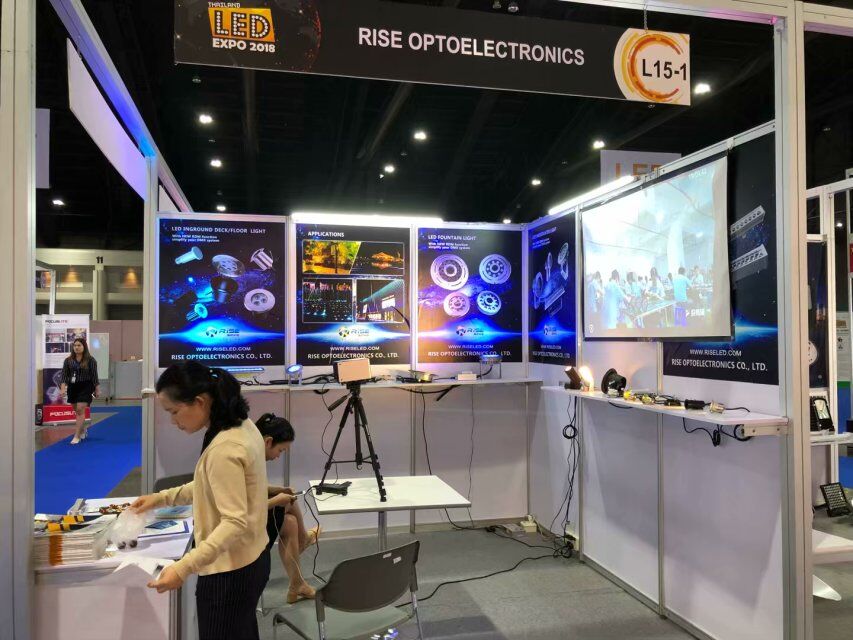

Landscape Lighting Display Board

Packing & Delivery

Delivery Terms:

  • Samples: Available and ready to ship within 5-7 days after payment confirmation.
  • Bulk Orders: General lead time is between 7-15 days, dependent upon the exact order quantity.
  • Shipping Methods: Flexible shipping via DHL, UPS, TNT, FEDEX Express, Air mail, and Seamail.

Terms of Payment:

  • Samples: Full payment required prior to shipment.
  • Accepted Payment Methods: L/C, T/T, Western Union, and PayPal are fully accepted.
  • Bulk Order Schedules: Options include 100% full upfront payment, or a 30% deposit in advance with the remaining balance paid prior to shipping.

Why Choose Us?

  • 1 Outdoor Lighting Experts: We focus heavily on the R&D and manufacture of specialized outdoor landscape lighting, providing comprehensive technical system solutions. We operate under an ISO9001: 2015 certified management system and have dedicated over 12 years exclusively to LED outdoor, underwater, and fountain lights.
  • 2 Extensive Export Experience: Backed by an experienced sales team, our products pass CE, RoHS, SGS, UL, and IP safety standard certifications. We hold over 30 patents. We supply all export shipping documentation, such as Certificates of Origin, to help customers handle import customs clearance efficiently.
  • 3 Established Project Pedigree: Serving mid-to-high-end clients across Europe and North America. Over 80% of our annual sales are driven by long-term recurring clients who install our light fixtures in large-scale municipal projects.
  • 4 Unique Proprietary Designs: We independently design, mold, and produce our lighting fixtures. This ensures our clients avoid price wars with generic market alternatives.
  • 5 Full Technical & System Support: Our engineering team can troubleshoot control system installations, including complex DMX programming, water pump integration, and solenoid valve synchronization.
  • 6 Flexible Customization Options: Quick turnaround on custom structural modifications, specialized software programming, or custom product designs for unique project parameters.
  • 7 Solid Supply Chain: Optimized production lines allow us to support smaller order sizes, even for customized systems.
  • 8 Rapid After-Sales Assistance: Customer inquiries receive a response and proposed solution within 12 hours. We offer a full 2 to 3-year replacement or repair warranty on our products.

Frequently Asked Questions (FAQ)

1. What materials are used to ensure these lights survive in salt water?
Our underwater lights are constructed with high-grade 316L stainless steel for both the front cover and housing, paired with 8mm thick tempered glass. This material configuration provides excellent anti-corrosion properties specifically required for marine and sea salt water applications.
2. Can these fixtures be permanently submerged underwater?
Yes, these fixtures carry a certified IP68 waterproof rating. The modular connection system is designed with hermetically sealed quick-connectors and junction boxes, ensuring total waterproof integrity for permanent underwater use.
3. How does the plug-and-play modular design save time on installation?
The modular system uses IP68 quick-connectors that eliminate complex hardwiring. This layout style saves up to 50% on labor installation time and allows individual lights to be replaced in seconds without disrupting the rest of the electrical line.
4. Do these lights support custom control systems like DMX?
Yes, our underwater LED lights are built to be fully compatible with DMX512 RGB control protocols, allowing you to synchronize dynamic light shows, pumps, and valves. We also offer customization options for specialized software control systems.
5. What is the typical lead time and shipping process?
Sample orders are prepared and shipped within 5-7 days of payment. Bulk order production averages 7-15 days depending on the final quantities. We ship worldwide via DHL, UPS, TNT, FEDEX, Air mail, or Seamail.
6. What warranty is provided for these LED fixtures?
We stand by our build quality and supply chain. We provide a full 2 to 3-year warranty with free replacement or repair service for our lighting products, with after-sales support responding within 12 hours.
